Toilet Stalls In Rural Bathroom Installation DWG Block for AutoCAD

Toilet Stalls In Rural Bathroom Installation DWG Block for AutoCAD

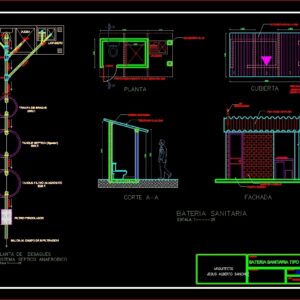

Architectural Plan.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Plant foundation, scale, laundry, Yee, Bathroom scrap, reducer, Mt. minimum, Hector jossa, owner, draft, from:, Architectural plans, date:, scale:, drawing:, Arquidraf, Contains:, Country house, Plan no., San fernando, Jesus alberto sanchez, architect, laundry, plant, Projection cover corrugated board, Roof tile o.a.c., cut, facade, laundry, Wooden door, Roof tile o.a.c., scale, cover, Shingles o.a.c., Sanitary battery, laundry, Yee, Pvc, shower, Mt. minimum, Fat trap, Mt. minimum, septic tank, Mt. minimum, Anaerobic filter tank, Mt. minimum, Percolator filter, Exit to the infiltration field, Pvc, Reventilation, sticks out, Of the cover, Wastewater plant, Anaerobic septic system, scale, Brick wall, owner, draft, from:, Sanitary battery, date:, scale:, Contains:, Plan no., architect, Ministry type sanitary battery, Jesus alberto sanchez, Wastewater plant, Eternit wavy board tile., Length m., Width m. Useful m., Lateral overlap, Wood strap, Reventilation, Jesus alberto sanchez

Raw text data extracted from CAD file:

PLANTA CIMENTACION ESCALA 1-----------50 P.=0.70 A LAVADERO BAN.d4" CSd2" I.d4" LVM.d2" CD 2"45° CD 2"45° YEE 4" YEE 4"x2" Despiece baño reductor CSd2" \A1;1.20 \A1;2.00 \A1;1.10 \A1;2.00 \A1;0.90 \A1;2.40 \A1;2.10 \A1;3.05 \A1;1.000 mt. MINIMO \A1;1.000 mt. MINIMO \A1;1.000 mt. MINIMO \A1;3.50 mt. MINIMO \A1;0.70 HECTOR JOSSA PROPIETARIO PROYECTO 2 DE: PLANTAS ARQUITECTONICAS JULIO-2004 FECHA: 1:50 ESCALA: DIBUJO: ARQUIDRAF CONTIENE: 1 CASA CAMPESTRE PLANO No. SAN FERNANDO MP.25700-24122 C/marca. JESUS ALBERTO SANCHEZ ARQUITECTO \A1;1.83 \A1;1.053 \A1;1.053 LAVADERO P.=0.70 PLANTA PROYECCION CUBIERTA PLACA ONDULADA No6 1.20 2.00 0.90 COLUMNETA.15x.15 1.10 2.40 2.10 TEJA PLACA O.A.C. No6 2.00 CORTE A-A FACHADA LAVADERO PUERTA MADERA TEJA PLACA O.A.C. No6 ESCALA 1-----25 CUBIERTA 3 TEJAS PLACA O.A.C. No6 3.05 BATERIA SANITARIA LAVADERO CSd2" I.d4" YEE 4"x2" YEE 4"x2" YEE 2" PVC d 2" PVC d 2" PVC d 4" PVC d 4" PVC d 4" DUCHA 3.50 mt. MINIMO TRAMPA DE GRASAS 1.000 mt. MINIMO TANQUE SEPTICO (digestor) 1.000 mt. MINIMO TANQUE FILTRO ANAEROBICO 1.000 mt. MINIMO FILTRO PERCOLADOR SALIDA AL CAMPO DE INFILTRACION PVC d 4" PVC d 4" PVC d 4" 500LT. 500LT. d2" REVENTILACION SOBRESALE 60cm. DE LA CUBIERTA PLANTA DE DESAGUES SISTEMA SEPTICO ANAEROBICO ESCALA 1-----25 COLUMNETA.15x.15 MURO EN LADRILLO 0.70 PROPIETARIO PROYECTO 1 DE: BATERIA SANITARIA ENERO2012 FECHA: 1:25 ESCALA: CONTIENE: 1 PLANO No. ARQUITECTO BATERIA SANITARIA TIPO MINISTERIO Jesus Alberto Sanchez PLANTA DE DESAGUES 250LT. 1.83 1.053 1 2 3 TEJA PLACA ONDULADA ETERNIT. No6 LONGITUD 1.83 m. ANCHO 1.053 m. UTIL 1.00 m. traslapo lateral .053cm. 1.053 CORREA EN MADERA d2" REVENTILACION JESUS ALBERTO SANCHEZ
