Ventilated Front Section DWG Section for AutoCAD

Ventilated Front Section DWG Section for AutoCAD

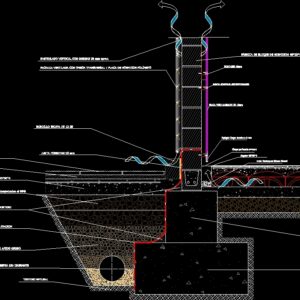

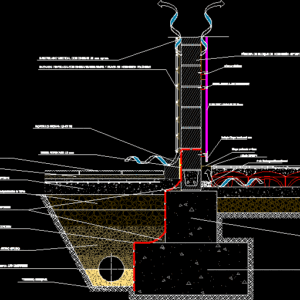

CONCRETE BLOCK WITH FRONT VENTED SOFFIT PANEL FOR EXTERIOR PLADUR polymer concrete strips.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

anti-resonant adhesive tape, gypsum plasterboard, Solera concrete quartz corundum according to, concrete, lost formwork cuplolex system, concrete block factory, vertical traced with omegas mm approx., ventilated facade with omega transversal concrete polymer plate, concrete tile, crumb mortar, concrete presolera cm mesh, upload of compacted cm yarns to, draining pipe, natural terrain, existing concrete slab, filler arid gruso, waterproofing, half mortar rods, riostra run in new cimenación, new foundation shoe, existing stacking, joint porexpan mm, bi-layer curb, skirting board lacquered mm, perforated plate, angular, arid machaqueo blanco macael

Raw text data extracted from CAD file:

\A1;MONTANTE 46mm BANDA ADHESIVA ANTIRRESONANTE PLACA YESO LAMINADO DE 13mm SOLERA HORMIGÓN CUARZO CORINDÓN (TERMNACIONES SEGÚN ESTANCIAS) HORMIGON HA-25/B/20/I SISTEMA CUPLOLEX DE ENCOFRADO PERDIDO FÁBRICA DE BLOQUE DE HORMIGÓN 40*20*20 RASTRELADO VERTICAL CON OMEGAS 20 mm aprox. FACHADA VENTILADA CON OMEGA TRANSVERSAL Y PLACA DE HORMIGON POLÍMERO BALDOSA 40*40*4 hormigón MORTERO DE MIGA 1/6 PRESOLERA DE HORMIGÓN 15 cm H.A-25 B/20/IIa MALLAZO 20*20*6 SUBASE DE ZAHORRAS 15 cm compactadas al 98% TUBERIA 150 DRENANTE TERRENO NATURAL SOLERA HORMIGÓN EXISTENTE RELLENO ARIDO GRUSO IMPERMEABILIZACION MEDIAS CAÑAS MORTERO RIOSTRA CORRIDA EN NUEVA CIMENACIÓN ZAPATA NUEVA CIMENTACIÓN Encachado EXISTENTE JUNTA POREXPAN 10 mm BORDILLO BICAPA 15-12 25 Rodapie Chapa lacada e=2 mm Chapa perforada e=4mm Angular 30*30*4 Arido Machaqueo Blanco Macael

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, concrete, construction details section, cut construction details, DWG, exterior, front, panel, pladur, plasterboard, polymer, section, ventilated
