Walls And Slopes DWG Block for AutoCAD

Walls And Slopes DWG Block for AutoCAD

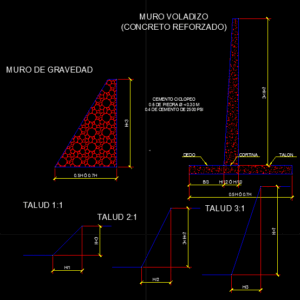

DIAGRAMS PREDIMENCIONAMIENTO retaining walls and proportion for height SLOPE

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

gravity wall, finger, curtain, heel

Raw text data extracted from CAD file:

H<3 0.5H Ó 0.7H 3<H<7 B/3 H/12 Ó H/10 0.5H Ó 0.7H H/1 H<3 H/2 H>7 3<H<7 H/3 H<<> 0.5H Ó 0.7H CEMENTO CICLOPEO 0.6 DE PIEDRA d < 0.30 M 0.4 DE CEMENTO DE 2500 PSI MURO DE GRAVEDAD 3<H<7 B/3 H/12 Ó H/10 0.5H Ó 0.7H MURO VOLADIZO (CONCRETO REFORZADO) DEDO CORTINA TALON H/1 H<3 H/2 H>7 3<H<7 H/3 TALUD 1:1 TALUD 2:1 TALUD 3:1

Language	Spanish
Drawing Type	Block
Category	Roads, Bridges and Dams
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, block, diagrams, DWG, height, retaining, retaining wall, slope, slopes, walls
