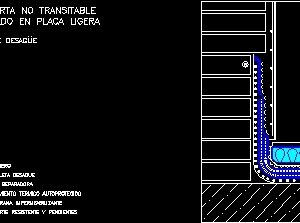

Plane roof not passable with slight badge finish

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

General detail, Waterproofing membrane, Self-protected thermal insulation, Separator layer, Resistant support earrings, Light plate finish, Non-passable deck, Drain detail, sink, Drain pan, Waterproofing membrane, Self-protected thermal insulation, Separator layer, Resistant support earrings, Light plate finish, Non-passable deck, Detail delivery wall, Resistant support earrings, Separator layer, Self-protected thermal insulation, Waterproofing membrane, Delivery wall, Light plate finish, Non-passable deck, Structural joint detail, Resistant support earrings, Separator layer, Self-protected thermal insulation, Waterproofing membrane, Elastic seal, Light plate finish, Non-passable deck

Raw text data extracted from CAD file:

DETALLE GENERAL 2 3 2 MEMBRANA IMPERMEABILIZANTE AISLAMIENTO TERMICO AUTOPROTEGIDO CAPA SEPARADORA 4 3 SOPORTE RESISTENTE Y PENDIENTES 1 4 1 ACABADO EN PLACA LIGERA CUBIERTA NO TRANSITABLE 7 DETALLE DESAGUE SUMIDERO 2 1 6 CAZOLETA DESAGUE 6 MEMBRANA IMPERMEABILIZANTE AISLAMIENTO TERMICO AUTOPROTEGIDO CAPA SEPARADORA 4 3 2 SOPORTE RESISTENTE Y PENDIENTES 1 4 7 3 ACABADO EN PLACA LIGERA CUBIERTA NO TRANSITABLE DETALLE ENTREGA A MURO 1 SOPORTE RESISTENTE Y PENDIENTES 2 3 4 CAPA SEPARADORA AISLAMIENTO TERMICO AUTOPROTEGIDO MEMBRANA IMPERMEABILIZANTE 8 ENTREGA A MURO 8 4 3 2 1 ACABADO EN PLACA LIGERA CUBIERTA NO TRANSITABLE DETALLE JUNTA ESTRUCTURAL 1 SOPORTE RESISTENTE Y PENDIENTES 2 3 4 CAPA SEPARADORA AISLAMIENTO TERMICO AUTOPROTEGIDO MEMBRANA IMPERMEABILIZANTE 9 JUNTA ELASTICA ACABADO EN PLACA LIGERA CUBIERTA NO TRANSITABLE 4 3 2 1 9
