Well Absorcion DWG Block for AutoCAD

Well Absorcion DWG Block for AutoCAD

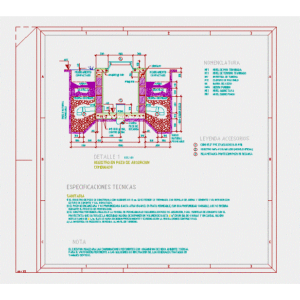

WELL FOR THE END OF TREATED SEWAGE IN SEPTIC TANKS WATER DISPOSITION; By infiltration; IN PLACES WHERE THERE ARE NO SEWER SYSTEMS

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

floor, Concrete channels, Vegetable soil with no grass, Permeable natural soil, sand, gravel, Concrete stone, Compacted improvement, sand, gravel, Concrete stone, Compacted improvement, Permeable natural soil, center, floor, Recharge well shirt, Ntt, Sanitary well log will be built with blocks of cm. Its exterior will be finished with cement sand cement its interior with hydrated lime cement stucco. The well will be deepened to penetrate the stratum with a depth that will be decided during the drilling process. The builder must carry out the permeability test required in the well to verify with the designer that he satisfies the maximum requirement of having a volume of up to a day of hours a maximum instantaneous flow of this will be done according to the procedure requirements in the regulations Contructive The inverted well is referred to the ground level., nomenclature, Finished floor level finished ground level inverted pipe steel polyvinyl chloride cast iron level on top level on bottom, Npt ntt inv pvc br hofo nst nsf, Recording in combined absorption well, Esc., Elbow pvc evacuation record hofo metal grid protection recharge well, Legend accessories, Technical specifications, detail, note, The executor will carry out the pertinent coordinations with environmental agencies for the pertinent approval of the solutions of infiltration of the residuals treated in septic tanks.

Raw text data extracted from CAD file:

\A1;600 \A1;900 \A1;600 \A1;900 \A1;150 \A1;150 \A1;600 \A1;1200 \A1;600 \A1;300 \A1;300 \A1;900 \A1;600 \A1;300 \A1;300 \A1;40 \A1;40 \A1;200 \A1;300 \A1;120 \A1;100 \A1;150 \A1;400 \A1;200 \A1;150 \A1;\U+2265850-SEGUN SUELO \A1;100 \A1;300 \A1;100 \A1;300 \A1;450 \A1;40 \A1;50 \A1;150 1 2 A B C C B A A4 + 1/2 1 2 3 3 A4_1-2 CANALES HORMIGON 5 5 5 5 0.7% ø110 ø110 ø160 -1.68 10% 10% ø110 \W3.04762; TIERRA VEGETAL CON O SIN CESPED 5 5 5 5 d110 5 5 5 6 SUELO NATURAL PERMEABLE d200 5 ARENA GRAVILLA PIEDRA HORMIGON MEJORAMIENTO COMPACTADO 5 d110 5 5 ARENA GRAVILLA PIEDRA HORMIGON \W4.24261; MEJORAMIENTO \W4.24261; COMPACTADO 5 5 \W2.49116; SUELO \W2.49116; NATURAL \W2.49116; PERMEABLE d12 (BR) @ 200, CENTRO @ 300 -1.0 5 7 2 d10(BR) @ 200 5 5 2(BR)ø10 d10@300 5 5 5 5 5 5 \U+2265850-SEGUN SUELO 5 5 5 5 5 CAMISA POZO DE RECARGA 5 5 NTT 5 SANITARIA 1) EL REGISTRO DE POZO SE CONSTRUIRA CON BLOQUES DE 15 cm. SU EXTERIOR SE TERMINARA CON REPELLO DE ARENA Y CEMENTO Y SU INTERIOR CON ESTUCO DE CEMENTO Y CAL HIDRATADA. 2) EL POZO SE ENCAMIZARA Y SE PROFUNDIZARA HASTA ATRAVESAR EL ESTRATO PERMEABLE, CON UNA PROFUNDIDAD VARIABLE, QUE SE DECIDIRA DURANTE EL PROCESO DE PERFORACION. 3) EL CONSTRUCTOR DEBERA REALIZAR LA PRUEBA DE PERMEABILIDAD REQUERIDA EN POZO DE ABSORCION, PARA VERIFICAR DE CONJUNTO CON EL PROYECTISTA QUE SATISFACE LA NECESIDAD MAXIMA DE DISPONER UN VOLUMEN DE HASTA # m³ EN UN DIA DE 8 HORAS Y UN CAUDAL MAXIMO INSTANTANEO DE # L/s. ELLO LO HARA EN SEGUN PROCEDIMIENTO Y EXIGENCIAS EN LA REGULACIONES CONTRUCTIVAS. 4) LA INVERTIDA EN POZO ESTA REFERIDA AL NIVEL DE TERRENO. NOMENCLATURA NIVEL DE PISO TERMINADA NIVEL DE TERRENO TERMINADO INVERTIDA DE TUBERIA CLORURO DE POLIVINILO \H0.9998x;BARRA DE ACERO HIERRO FUNDIDO NIVEL SOBRE TAPA NIVEL SOBRE FONDO NPT NTT INV PVC BR HoFo NST NSF REGISTRO EN POZO DE ABSORCION COMBINADO ESC. 1:20 CODO 87.5° PVC EVACUACION H-M \U+2205110 REGISTRO HoFo \U+2205500/600x200 (MODELO OFICIAL) REJA METALICA PROTECCION POZO DE RECARGA LEYENDA ACCESORIOS 1 2 3 ESPECIFICACIONES TECNICAS DETALLE 1 NOTA \W0.80952; EL EJECUTOR REALIZARA LAS COORDINACIONES PERTINENTES CON ORGANISMOS DE \W0.80952; MEDIO AMBIENTE Y DEMAS, PARA EL VISTO BUENO PERTINENTE A LAS SOLUCIONES DE \W0.80952; INFILTRACION DEL LOS RESIDUALES TRATADOS EN TANQUES SEPTICOS.

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	absorption, autocad, block, disposition, DWG, einrichtungen, facilities, gas, gesundheit, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, places, provision, septic, sewage, sewer, tanks, treated, wasser bestimmung, water, well
