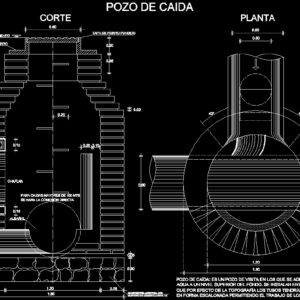

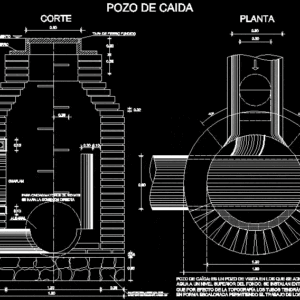

Drop Manhole of a sewer; seen from plant and cut

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

plant, Greater than mts, cut, For greater falls of mts, The direct connection will be made, sewer, For falls, Sand cement mortar, Masonry seated with, Est, Vars from, chamfer, Iron broach, Pavement level, Fall well: it is a well of visit in which the entrance of the water is admitted a superior level of the bottom. Are installed between sections in which as a result of the topography the tubes will have outstanding slopes in a stepped form allowing the work of the sections that unite., Fall well, Cms, minimum, Cast iron cover

Raw text data extracted from CAD file:

PLANTA MAYORES DE 100 MTS 0.30 0.60 0.60 0.05 CORTE 0.60 0.10 0.30 1.20 0.30 1.80 0.28 PARA CAIDAS MAYORES DE 100 MTS SE HARA LA CONEXION DIRECTA ALBAÑAL PARA CAIDAS 0.10 0.20 0.15 0.20 0.25 0.20 0.30 0.60 MORTERO DE CEMENTO ARENA 1:5 MAMPOSTERIA ASENTADA CON EST.DE 1/4'' O 4 VARS. DE 3/8'' CHAFLAN BROCAL DE FIERRO NIVEL DEL PAVIMENTO POZO DE CAÍDA: ES UN POZO DE VISITA EN LOS QUE SE ADMITE LA ENTRADA DEL AGUA A UN NIVEL SUPERIOR DEL FONDO. SE INSTALAN ENTRE TRAMOS EN LOS QUE POR EFECTO DE LA TOPOGRAFÍA LOS TUBOS TENDRÁN PENDIENTES SUMAMENTE EN FORMA ESCALONADA PERMITIENDO EL TRABAJO DE LOS TRAMOS QUE UNE. POZO DE CAIDA 1.20 1.80 0.02 @ 20 CMS 1.75 MINIMO TAPA DE FIERRO FUNDIDO 40º 40º
