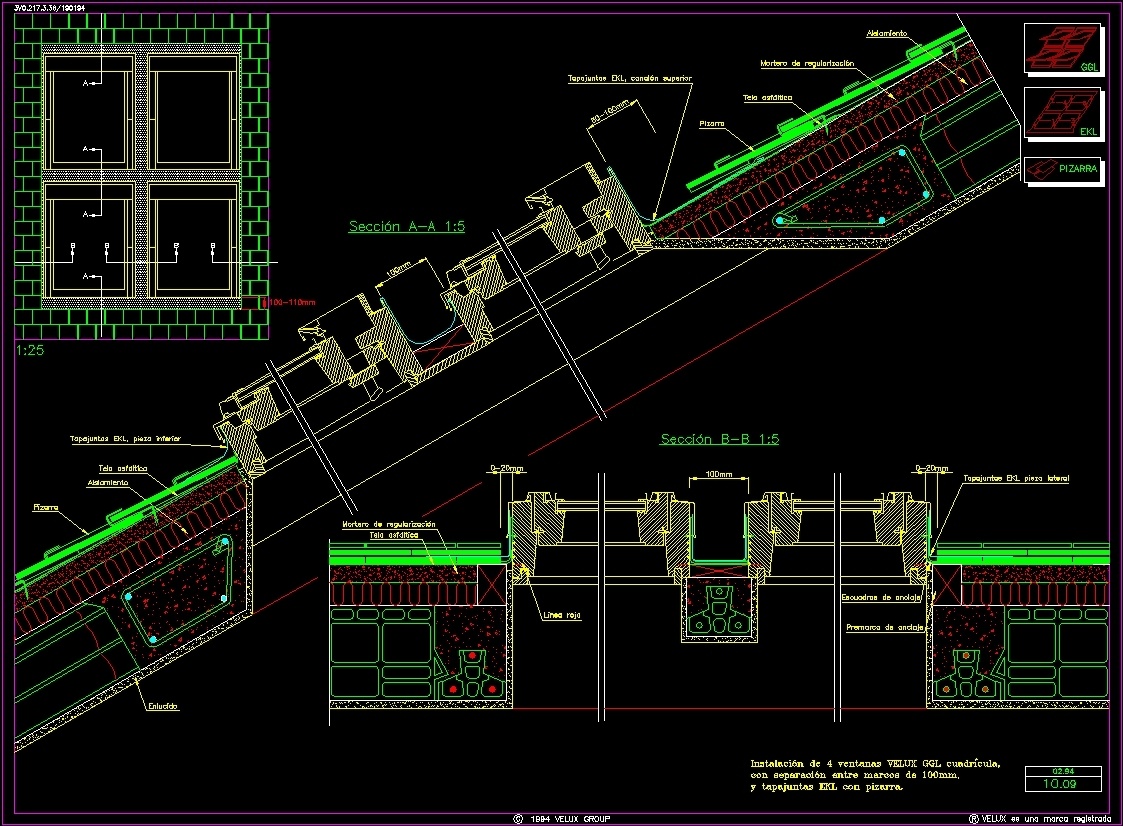

Windows Inclined Roofs 1009 DWG Block for AutoCAD

4 windows GGLwith slate

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

red line, asphalt cloth, flashing ekl, lower part, slate, insulation, plaster, mortar regularization, flashing ekl side piece, and flashing ekl with slate., anchor brackets, anchor pre-frame, velux is a registered trademark, flashing ekl , upper gutter, blackboard, ekl, —, ggl

Raw text data extracted from CAD file:

60-100mm 0-20mm 0-20mm 100mm 100mm 1994 VELUX GROUP Linea roja Tela asfaltica Tapajuntas EKL, pieza inferior Pizarra Aislamiento / Enlucido C Mortero de regularizacion Tela asfaltica / / -140.0276733329085 1:25 A B A B A 3VO.217.3.36/190194 A 100-110mm B B -1422.899691732576 Seccion A-A 1:5 / Instalacion de 4 ventanas VELUX GGL cuadricula, Tapajuntas EKL pieza lateral con separacion entre marcos de 100mm, y tapajuntas EKL con pizarra. / / Seccion B-B 1:5 -36.29000130487856 / Escuadras de anclaje Premarco de anclaje -140.0276733329085 09 02.94 VELUX es una marca registrada R 10. Pizarra 20.7979110154493 Tela asfaltica Tapajuntas EKL, canalon superior / Mortero de regularizacion / / Aislamiento 1 3 PIZARRA EKL --- --- 4 --- 6 --- GGL
