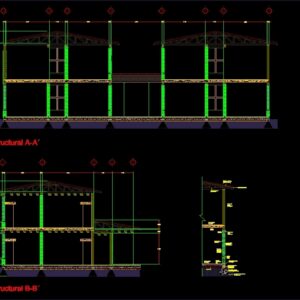

Wood – Details – Section Facade

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

transparent simple glass window, thick red cedar wood frame, wooden column, wooden armor for the roof, structural cut, wooden lock, wood trim, against infiltrations, of ash stave, wooden lintel, Catalan type tile, scale:, workshop: jose villagran garcia, construction: arq mario de jesus carmona vineyards, Plane: key structural cuts:, symbology:, project: parres el guarda, students: luis jesus serrato zuñiga orozco garcia jesus sánchez ortiz víctor manuel, foundation stone run breaststroke, concrete ruler chain, waterproofing, finished floor level, axis, of pine plywood, of ash stave, adobe wall, thick concrete template of thickness, lock of league with, gravel, cutting line

Raw text data extracted from CAD file:

0.80 0.30 0.50 0.10 0.10 0.20 0.20 0.05 3.25 0.15 1.13 0.20 0.65 1.71 4.09 0.20 4.11 1.50 0.20 3.90 0.20 4.80 0.20 3.90 0.20 0.65 0.50 0.10 2.30 0.10 0.20 0.20 0.05 0.55 2.50 0.20 0.15 0.97 8.95 2.93 0.34 0.82 3.36 0.20 0.20 4.84 1.73 1.98 +0.30 +3.75 +8.30 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 ventana de vidrio simple transparente (2.3x2.3cm) marco de madera de cedro rojo 10cm de espesor columna de madera (20x350cm) armadura de madera para la cubierta corte estructural A-A´ corte estructural B-B´ 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 trabe de madera moldura de madera corte-reheten contra infiltraciones \A1;piso de duela de fresno de \S3/4;" Dintel de madera (30x10) teja tipo catalana (112x25x10cm) A B C D F G H 1 2 3 4 +0.30 +3.75 +8.30 Escala: 1:50 Taller: Jose Villagran Garcia \W8.90284; Construccion: \W8.46076; Arq. Mario de Jesus Carmona Viñas Plano: Cortes Estructurales Clave: Simbologia: Proyecto: Hostal, Parres el Guarda Alumnos: Luis Jesus Serrato Zuñiga Orozco Garcia Jesus Sánchez Ortiz Víctor Manuel Cimentación corrida de piedra braza (90x60x30cm) cadena de desplante de concreto (20x20) 4var #3 E#2@15 impermeabilizante Nivel de piso terminado (N.P.T) eje \A1;hojas de triplay de pino de \S1/2;" \A1;piso de duela de fresno de \S3/4;" E 5 5 5 muro de adobe (20x9.5x40) plantilla de concreto pobre de 5cm de espesor Trabe de liga con 4var #3 E#2@20 Grava (15cm) Linea de corte

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Glass, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, construction details section, cut construction details, details, DWG, facade, section, Wood
