Wood Door Details DWG Detail for AutoCAD

Wood Door Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

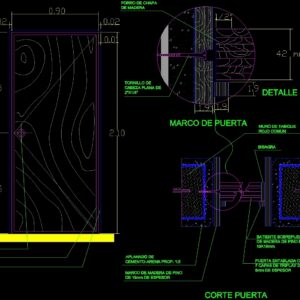

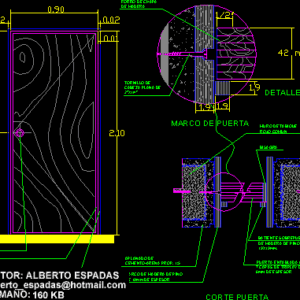

veneer wood veneer, door frame, detail a, common red partition wall, hinge, door cut

Raw text data extracted from CAD file:

0.90 0.02 0.02 0.01 2.10 1.05 1.05 42 mm 1.9 1.9 1.9 1/2″ 0.90 0.02 0.02 0.01 2.10 1.05 1.05 FORRO DE CHAPA DE MADERA TORNILLO DE CABEZA PLANA DE 2″X1/4″ MARCO DE PUERTA DETALLE A 42 mm 1.9 1.9 1.9 1/2″ MURO DE TABIQUE ROJO COMUN BISAGRA BATIENTE SOBREPUESTA DE MADERA DE PINO DE 19X19mm. PUERTA ENTABLADA CON 7 CAPAS DE TRIPLAY DE 6mm DE ESPESOR APLANADO DE CEMENTO-ARENA PROP. 1:5 MARCO DE MADERA DE PINO DE 19mm DE ESPESOR CORTE PUERTA
