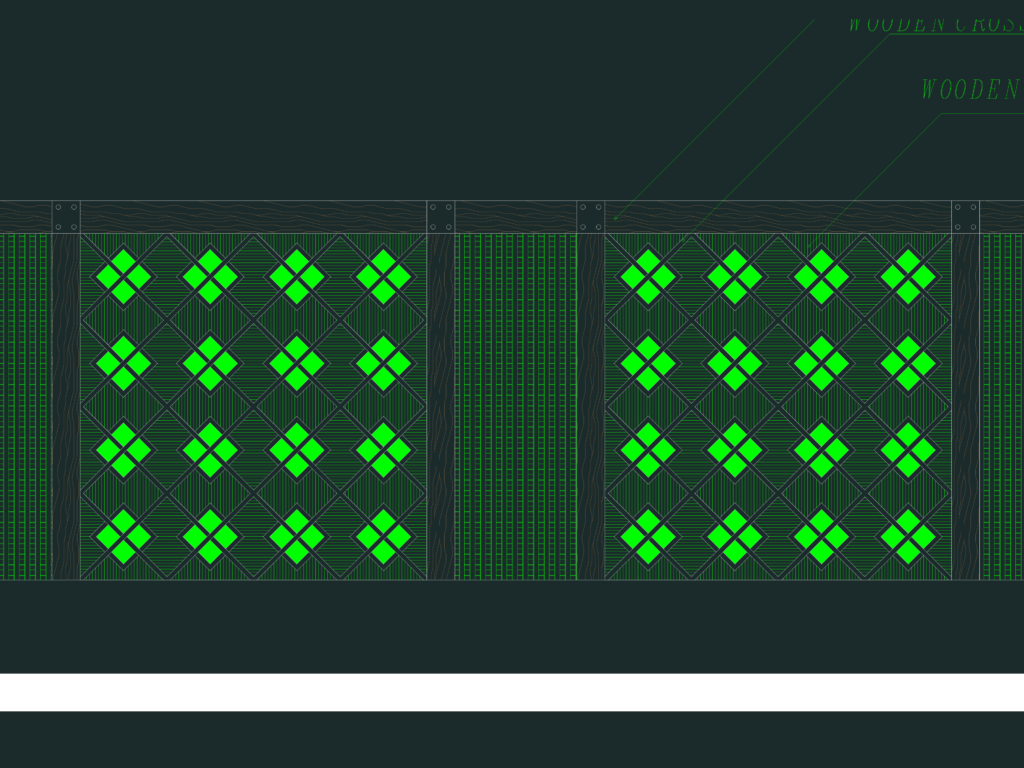

Elevation for a wooden fence with timber post and beam construction, aimed at residential gardens or park boundaries. Front view is there, plus cross-sections for the actual structural assembly. We’ve called out sizes for 6×6″ posts, 6×7″ beams, and 0.5×0.5″ shutters. Also shows the 1×1″ cross-section for the internal frames. It’s in millimeters, easy to drop into site plans or property elevations. Uses wood grain hatches and clear callouts for the different timber members. Layers are separated for wood, frames, hatch, and the usual
Wooden Fence Elevation and Timber Post Construction Details
