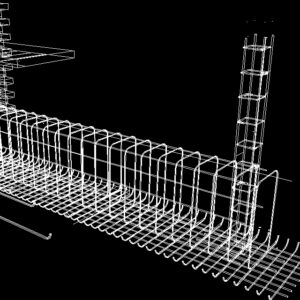

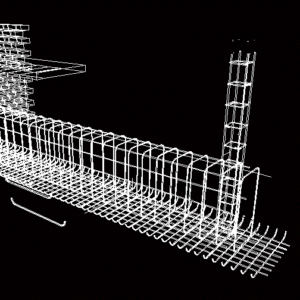

3D isometric wireframe model of a rebar cage for a continuous foundation and column junction. The drawing displays the longitudinal reinforcement, stirrups, and base mesh for a grade beam or continuous footing (zapata corrida).
The layout includes the starter bars and ties for an intersecting column, shown without the concrete volume to provide a clear view of the steel reinforcement assembly and lap lengths. This file is used for visualizing complex reinforcement intersections in structural planning. Detalle de zapata armada.
