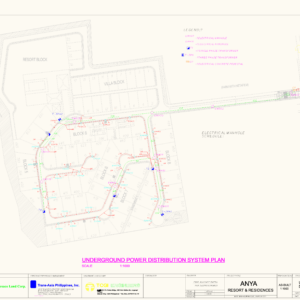

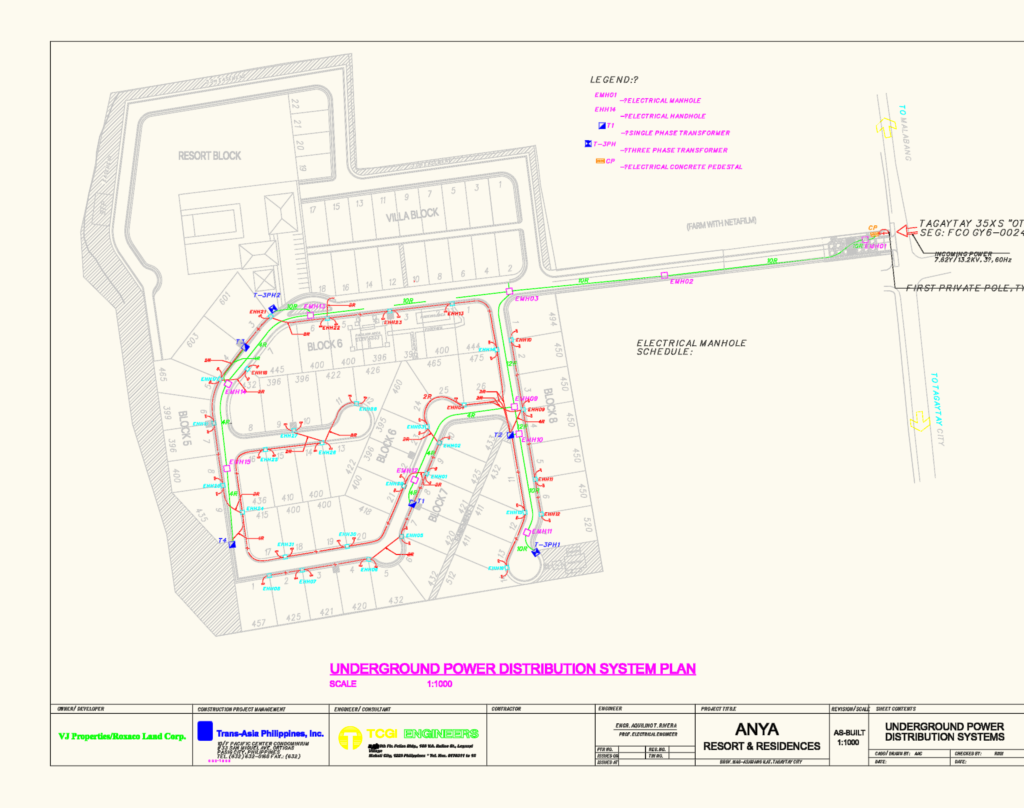

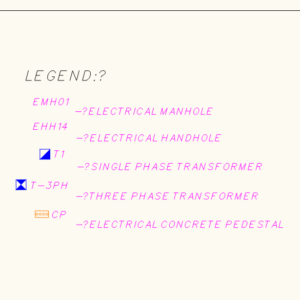

Underground power distribution layout for the Anya Resort & Residences in Tagaytay City. This as-built plan details the primary and secondary electrical lines across several site blocks, including the Resort and Villa areas. The drawing includes a legend for electrical manholes (EMH), handholes (EHH), and transformer placements, covering both single and three-phase types. Incoming power is rated at 7.62Y/13.2KV, 3-phase, 60Hz, routing from the first private pole. It features site elements like easements, footpaths, and parking zones relative to the electrical infrastructure. Drawn at a 1:1000 scale, the plan provides clear locations for all underground utilities.
13.2kV Underground Power Distribution System As-Built Plan for Anya Resort
