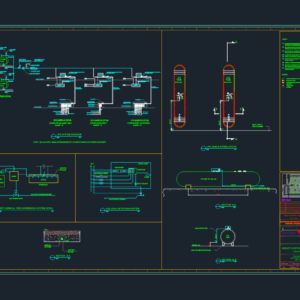

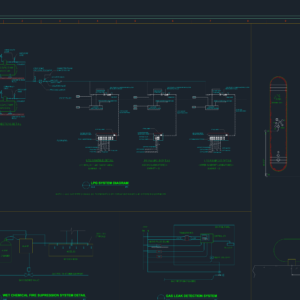

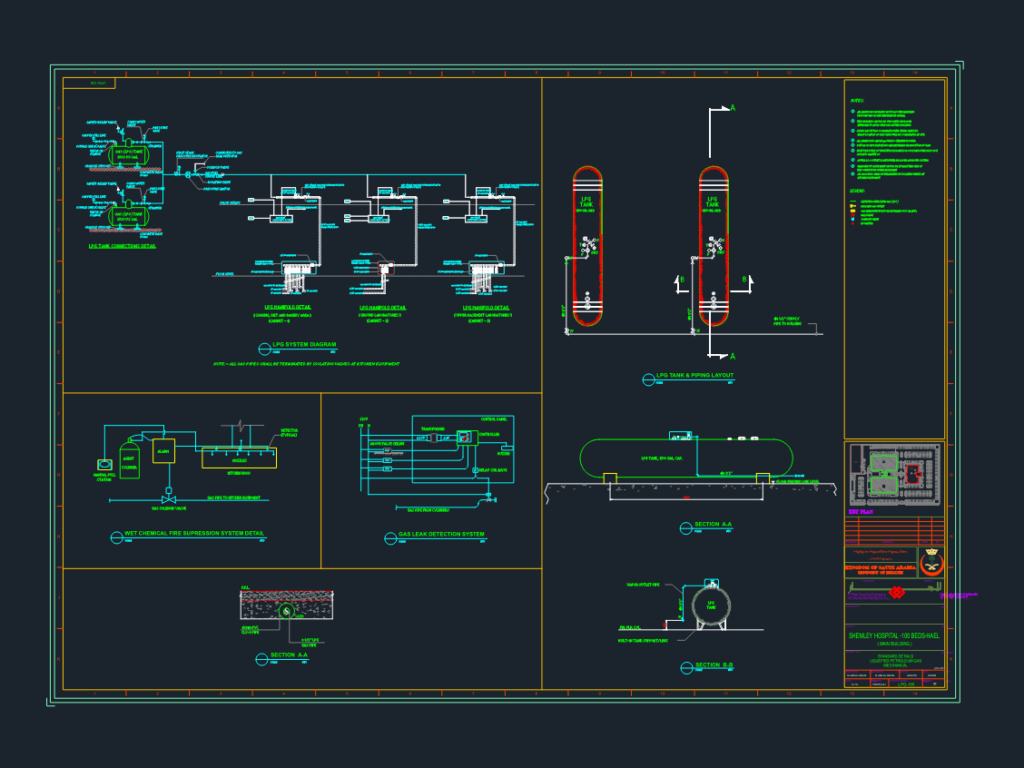

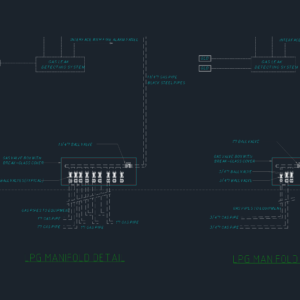

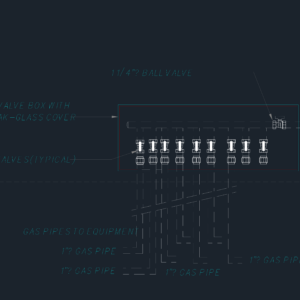

LPG piping and tank layout for a 100-bed hospital project, for the main building. We included the 1500 gallon tanks with sections A-A and B-B showing the built-in supports, vapor outlets, & concrete bases. Everything from manifold details for cooking areas to laboratories is covered, along with the gas fuel supply lines. You also get the wet chemical fire suppression system detail for kitchen hoods and the full leak detection system wiring. Technical bits like the 1 1/2″ supply pipes, pressure regulators, & solenoid valves are all here. Manifold connections using black steel pipes and safety relief valves are shown in detail for various cabinets. It’s a solid MEP reference for commercial or healthcare gas systems.
1500 Gallon LPG Tank and Piping Layout for Hospital
