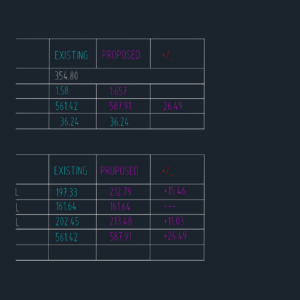

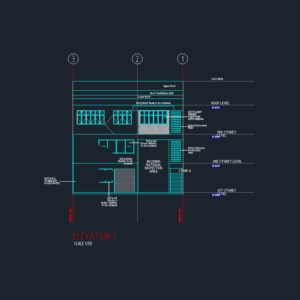

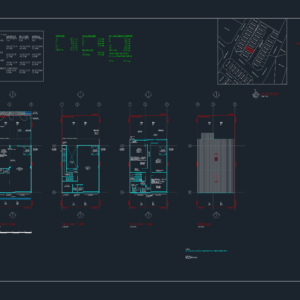

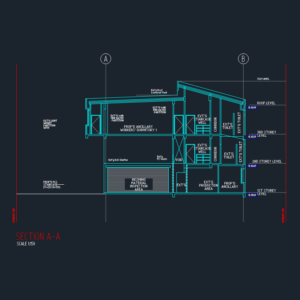

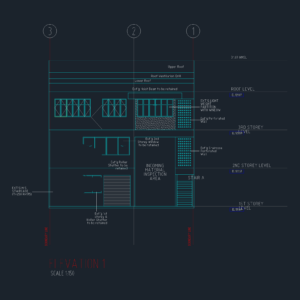

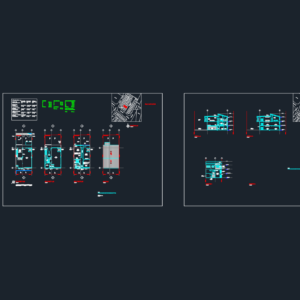

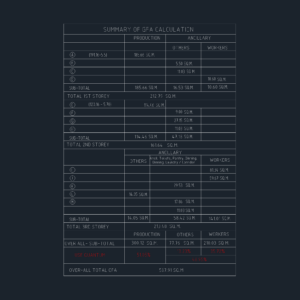

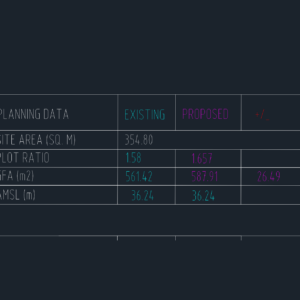

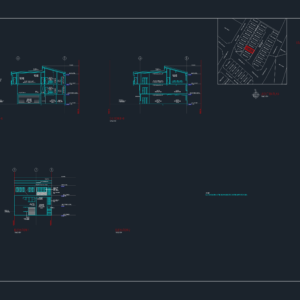

Industrial building layout for a site in Tagore Lane. It’s got the full set: 1st, 2nd, and 3rd storey plans plus sections and elevations. Shows the addition of ancillary worker dormitories alongside production and packaging areas. includes GFA tables and location plan too. Metric units, drawn in mm. Includes: – 1st to 3rd floor plans – Sections A-A and B-B – Front and side elevations – Site loocation map and area calcs
3-Storey Industrial Factory with Worker Dorms DWG Plan Set
