Acoustic Insulation Details DWG Detail for AutoCAD

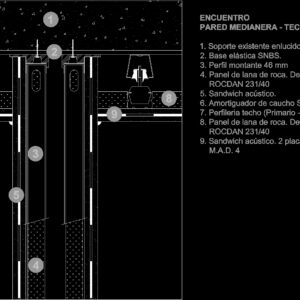

Detail Wall – Roof

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Meeting wall panel ceiling existing plaster. Elastic base snbs. Profile uprights mm panel of rock wool. Density rocdan sandwich acoustic. Rubber snug sntg series snh. Roof tile panel of rock wool. Density rocdan sandwich acoustic. Gypsum plasterboards m.a.d.

Raw text data extracted from CAD file:

ENCUENTRO PARED MEDIANERA – TECHO 1. Soporte existente enlucido. 2. Base elástica SNBS. 3. Perfil montante 46 mm 4. Panel de lana de roca. Densidad 70 kg/m 3 . ROCDAN 231/40 5. Sandwich acústico. 6. Amortiguador de caucho SERIE SNTG o SNH. 7. Perfileria techo (Primario – Secundario). 8. Panel de lana de roca. Densidad 70 kg/m 3 . ROCDAN 231/40 9. Sandwich acústico. 2 placas yeso laminar 13 + M.A.D. 4
