Acoustic Insulation Details DWG Detail for AutoCAD

Acoustic Insulation Details DWG Detail for AutoCAD

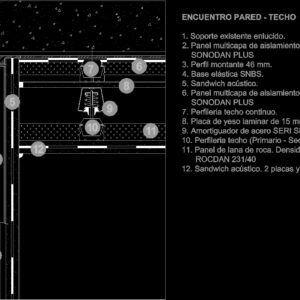

Detail External Bricks Wall and plaster panels in interior – Roof with softeners

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Meeting wall ceiling support existing plaster. Multi-layer insulation panel. Sonodan plus profile uprights mm. Elastic base snbs. Acoustic sandwich. Multi-layer insulation panel. Sonodan plus continuous roof profile. Laminar gypsum board of mm. Steel shock absorber seri sntm snhm. Roof tile panel of rock wool. Density rocdan sandwich acoustic. Laminated plasterboard

Raw text data extracted from CAD file:

ENCUENTRO PARED - TECHO 1. Soporte existente enlucido. 2. Panel multicapa de aislamiento. SONODAN PLUS 3. Perfil montante 46 mm. 4. Base elástica SNBS. 5. Sandwich acústico. 6. Panel multicapa de aislamiento. SONODAN PLUS 7. Perfileria techo continuo. 8. Placa de yeso laminar de 15 mm. 9. Amortiguador de acero SERI SNTM o SNHM. 10. Perfileria techo (Primario - Secundario). 11. Panel de lana de roca. Densidad 70 kg/m 3 . ROCDAN 231/40 12. Sandwich acústico. 2 placas yeso laminar 13 + M.A.D.4

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Steel
Measurement Units
Footprint Area
Building Features
Tags	acoustic, acoustic detail, akustische detail, autocad, bricks, DETAIL, details, details acoustiques, detalhe da acustica, DWG, external, insulation, interior, isolamento de ruido, isolation acoustique, noise insulation, panels, plaster, roof, schallschutz, wall
