Adobe House DWG Full Project for AutoCAD

Room house with adobe walls projected

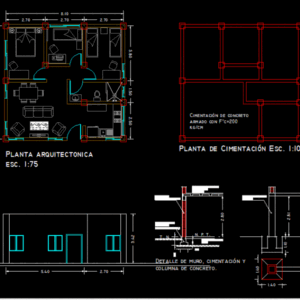

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

chimney, architectural plant esc., foundation plant esc., reinforced concrete foundation with, t. n., n. p. t., insulation space on floor, reinforced concrete with vrs. from, concrete slab lightened with polystyrene., detail of concrete column foundation., adobe wall cm measurements, concrete column

Raw text data extracted from CAD file:
