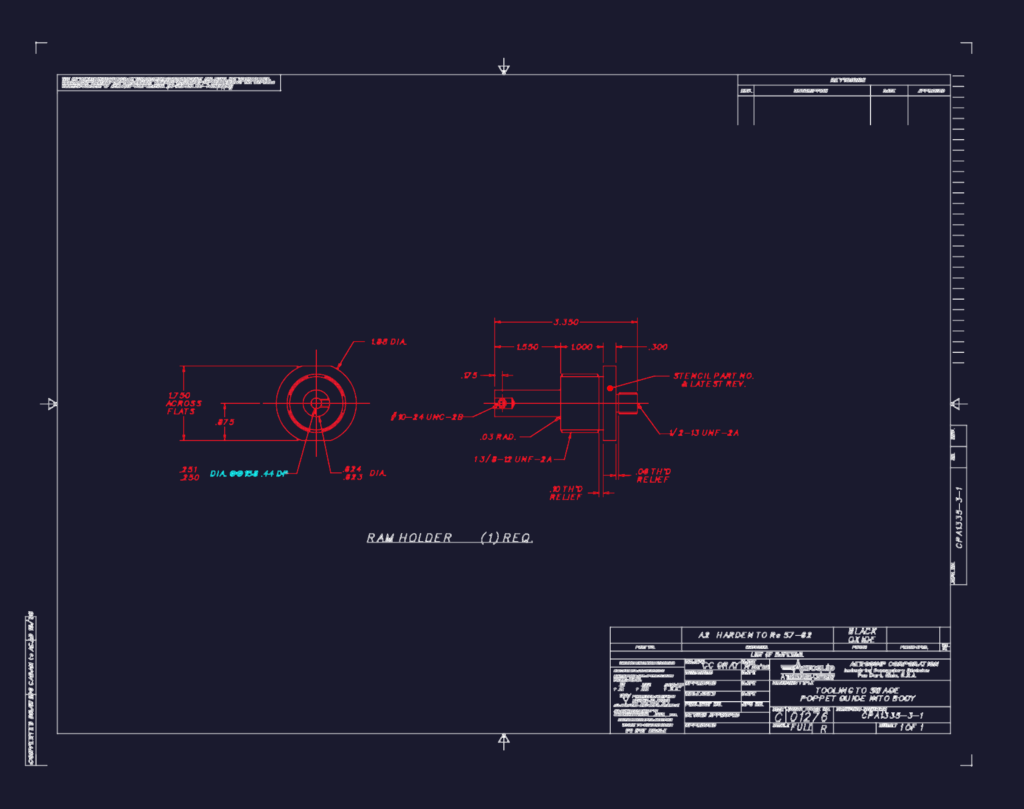

Ram holder for Aeroquip swaging tooling, for the poppet guide assembly. Detail includes plan and elevation views with full callouts per ANSI Y14.5 and finish specs per ANSI Y14.36. Fabricated from A2 tool steel, hardened to Rc 57-62 with black oxide finish; incl. #10-24, 1/2-13, and 1 3/8-12 UNF threads. Use for industrial connector manufacturing or tool room fabrication.
Aeroquip Tooling to Swage Poppet Guide Ram Holder
