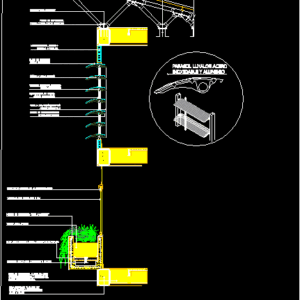

Awning, Louvered Window Shades And Planter Box DWG Plan for AutoCAD

Section

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

pacific university, subject :, student :, semester :, cod :, teacher :, content :, date :, scale :, plane number, architecture faculty, welded stiffener, profile fastening bolt with metal drawer, luxalon, parasol luxalon stainless steel and aluminum, ground for garden, smooth or perforated aluminum strip, aluminum rib, tubular terminal end stainless steel, support structure stainless steel, stainless steel drive rod, stainless steel drive arm, aluminum window frame White

Raw text data extracted from CAD file:

UNIVERSIDAD DEL PACIFICO ASIGNATURA: ALUMNO: SEMESTRE: COD: DOCENTE: CONTENIDO: FECHA: ESCALA: PLANO Nº FACULTAD ARQUITECTURA PERNOS DE ANCLAJE 1/2" ACERO RIGIDIZADOR SOLDADO PERNO DE AMARRE DEL PERFIL CON EL CAJON METALICO PERFIL METALICO TIPO H # 6 CORREA METALICA PERFIL TIPO I # 1 TEJA ASBESTO CEMENTRO # 8 LUXALON LUXALON PARASOL LUXALON ACERO INOXIDABLE Y ALUMINIO MUROS EN CONCRETO, VARILLAS DE 3/8" TIERRA PARA JARDIN LOSA DE CONCRETO, MALLA ELECTROSOLDADA 66 DESAGUE PVC 2" CON COLADERA Y FILTRO LOSA EN CONCRETO, ALIGERADA CON CASETON DE ESTERILLA 40X40X30 CM, MALLA ELECTROSOLDADA FLEJE EN ALUMINIO LISO O PERFORADO COSTILLA EN ALUMINIO TUBULAR TERMINAL EXTREMO ACERO INOXIDABLE ESTRUCTURA DE APOYO ACERO INOXIDABLE VARILLA DE ACCIONAMIENTO ACERO INOXIDABLE BRAZO DE ACCIONAMIENTO ACERO INOXIDABLE LADRILLO FAROL HUECO + REPELLO + PINTURA VIDRIO PLANO TEMPLADO 5 MM MARCO DE VENTANA EN ALUMINIO BLANCO VIGA EN PERFIL TUBULAR DE ACERO RELLENO DE HORMIGON 40 CM X 30 CM

Language	Spanish
Drawing Type	Plan
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Aluminum, Steel, Other
Measurement Units	Metric
Footprint Area
Building Features	Garden / Park
Tags	autocad, box, DWG, plan, section, window
