Basic Staircase DWG Section for AutoCAD

Basic Staircase DWG Section for AutoCAD

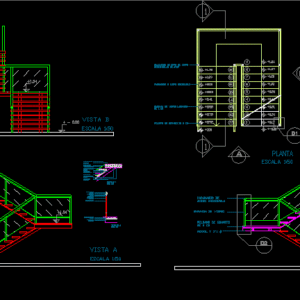

Basic staircase – Plant – Section – Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

granite step of cm, mm laminated glass rail, stainless steel handrail, rectangular sheet metal baluster, stainless steel handrail, glass rail, granite step of cm, scale, view, view, scale, laminated glass, wall of hua, cm rest, rectangular plate of, footprint of granite, welding, heavy plate, heavy plate, built-in thick compression plate with metal drills, metal drills, wall of hua, stainless steel handrail, hard plate, welding, sheet profile, rectangular tube cm cm, laminated glass, footprint of granite, heavy plate, welding, rectangular tube cm cm, detail esc.

Raw text data extracted from CAD file:

+ 1 2 4 3 6 5 8 7 9 15 16 17 14 13 12 11 10 +-0.00 +0.34 +0.51 +0.68 +0.86 +1.03 +1.20 +1.37 +1.54 +1.72 +1.89 +2.06 +2.23 +2.41 +2.58 +2.75 +2.92 +3.10 +0.17 A B PELDAÑO DE GRANITO DE 5 CM BARANDA DE VIDRIO LAMINADO DE 6 MM PASAMANOS D ACERO INOXIDABLE BALAUSTRE DE CAÑO DE CHAPA RECTANGULAR DE 1"X2" D1 1 1 PASAMANOS DE ACERO INOXIDABLE BARANDA DE VIDRIO PELDAÑO DE GRANITO DE 5 CM \A1;PERFIL T 3"X \S1/4;" ESCALA 1:50 ESCALA 1:50 ESCALA 1:50 VISTA B +1.54 +3.10 + - 0.00 +1.54 +3.10 + - 0.00 VISTA A ESCALA 1:50 VIDRIO LAMINADO DE 6MM MURO DE HºAº DESCANSO DE 12 CM CHAPA RECTANGULAR DE 1/4 HUELLA DE GRANITO DE 5CM SOLDADURA \A1;PERFIL T 3" X \S1/4;\H1.429x;" CHAPA GRUESA DE 3/8 CHAPA GRUESA 1/8 CHAPA GRUESA EMPOTRADA DE COMPRESION CON BROCAS METALICAS BROCAS METALICAS MURO DE HºAº PASAMANOS DE ACERO INOXIDABLE CHAPA DURA SOLDADURA PERFIL DE CHAPA TUBO RECTANGULAR 1 CM X 3 CM VIDRIO LAMINADO E 2CM HUELLA DE GRANITO DE 5CM CHAPA GRUESA 1/8 \A1;PERFIL T 3"X\S1/4;\H1.429x;" SOLDADURA TUBO RECTANGULAR 1 CM X 3 CM D2 DETALLE 1 ESC. 1:5 DETALLE 2 ESC. 1:5

Language	Spanish
Drawing Type	Section
Category	Stairways
Additional Screenshots
File Type	dwg
Materials	Glass, Steel
Measurement Units
Footprint Area
Building Features
