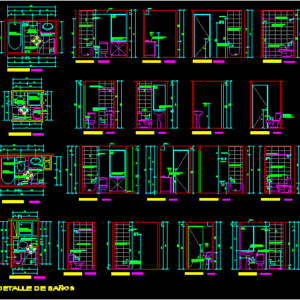

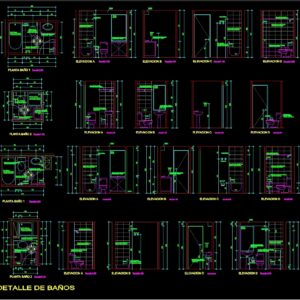

Technical CAD drawings for four distinct residential bathroom configurations, providing dimensioned floor plans and interior wall elevations. The layouts cover various sizes, including 2.35m x 1.53m and compact 1.40m x 1.40m arrangements, suitable for both main bathrooms and secondary powder rooms.
Each set of drawings includes four interior elevations (labeled A through D) illustrating fixture mounting heights, tiling patterns, and accessory placement. The details show standard sanitaryware such as bathtubs, toilets (WC), and pedestal sinks, alongside vanity units with marble-composite tops (duromarmol). Finishes are noted for 20x30cm ceramic wall tiles and 30x30cm floor tiles. Additional architectural details include mirrors, towel rails, soap dishes, and curtain rods. These 2D blocks are drafted at a 1:20 scale with clear dimension strings for plumbing rough-ins and finish heights. Detalle de baños.
