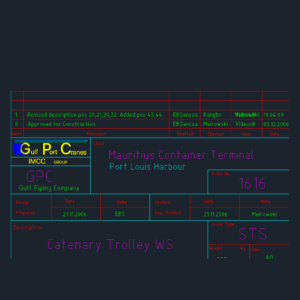

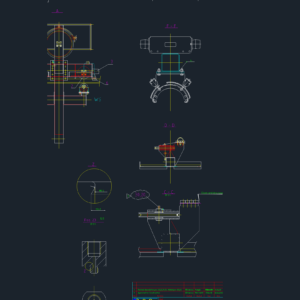

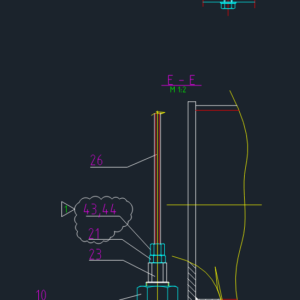

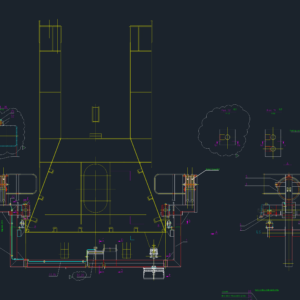

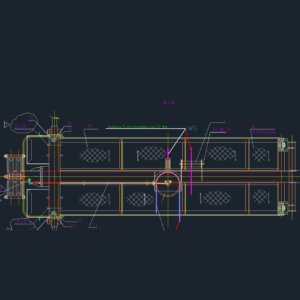

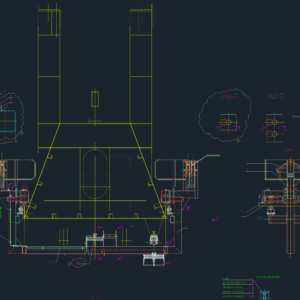

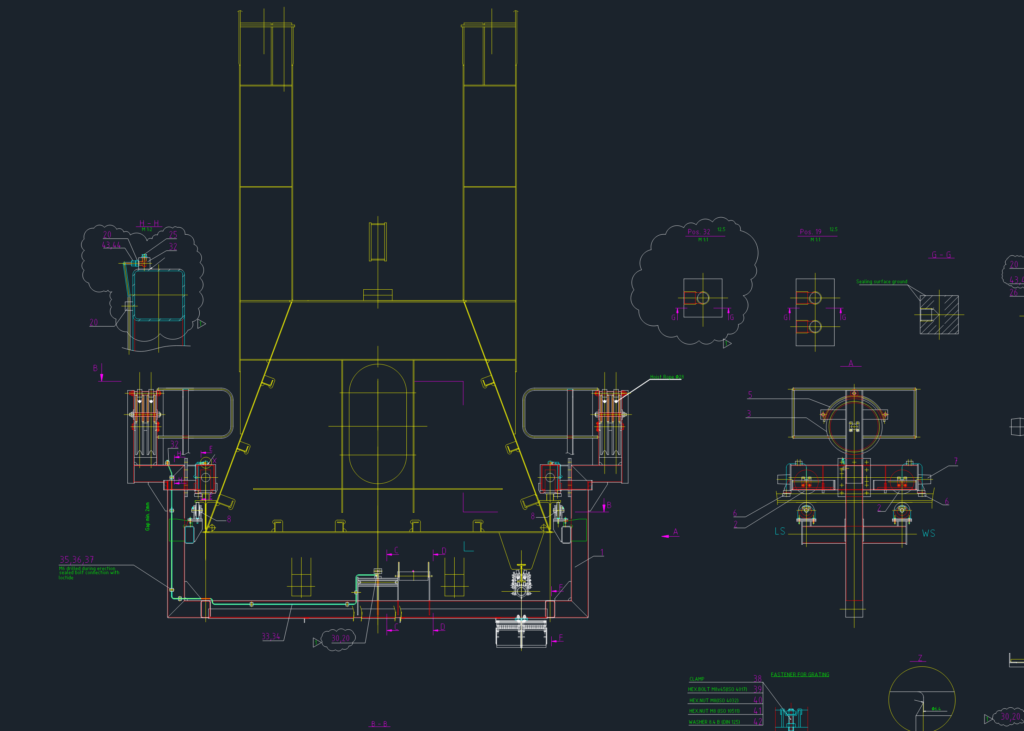

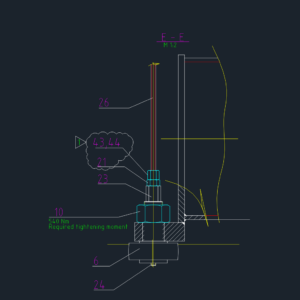

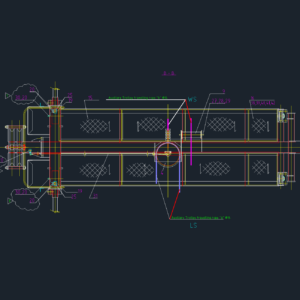

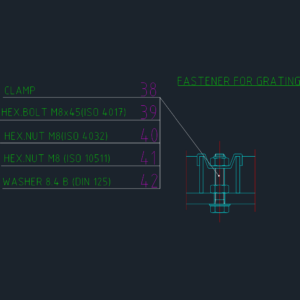

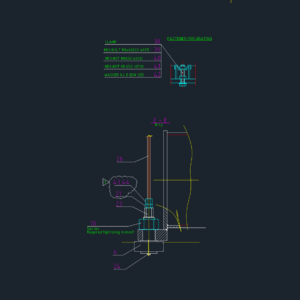

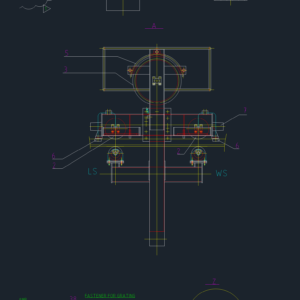

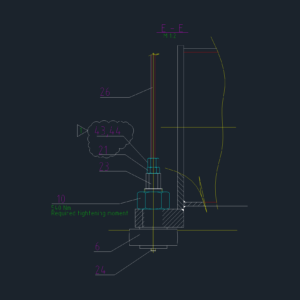

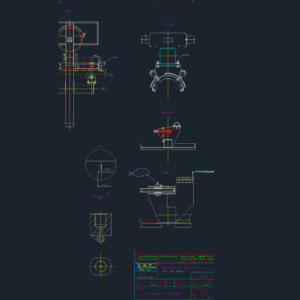

Assembly details for a Catenary Trolley WS used on STS cranes at the Mauritius Container Terminal. Includes various sections and views—B-B through H-H are all there. Covers the ø28 hoist rope and ø14 traveling rope connections, along with hardware like M8 hex bolts and nuts per ISO standards. I’ve noted a 540 Nm tightening torque on the main assembly. It’s got grating fastener details, sealing surface ground notes, etc. Originally drawn for Gulf Piping Company, so it’s a solid professional reference.
Catenary Trolley WS Assembly for Ship to Shore Crane
