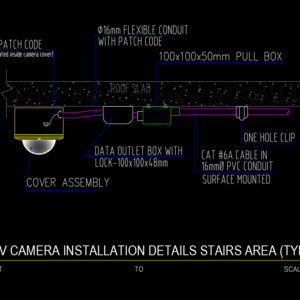

Technical section detail for a surface-mounted CCTV dome camera installation, typically used in stairwell areas. The drawing shows the camera assembly mounted to a concrete roof slab with associated electrical components. Specifications include a 100x100x48mm data outlet box with a lock and a 100x100x50mm pull box.
Wiring details specify Cat 6A cabling housed in 16mm PVC conduit secured by one-hole clips. The camera connection uses 16mm flexible conduit for the patch cord. This 2D CAD block provides standard component dimensions and mounting configurations for security system planning and electrical shop drawings.
