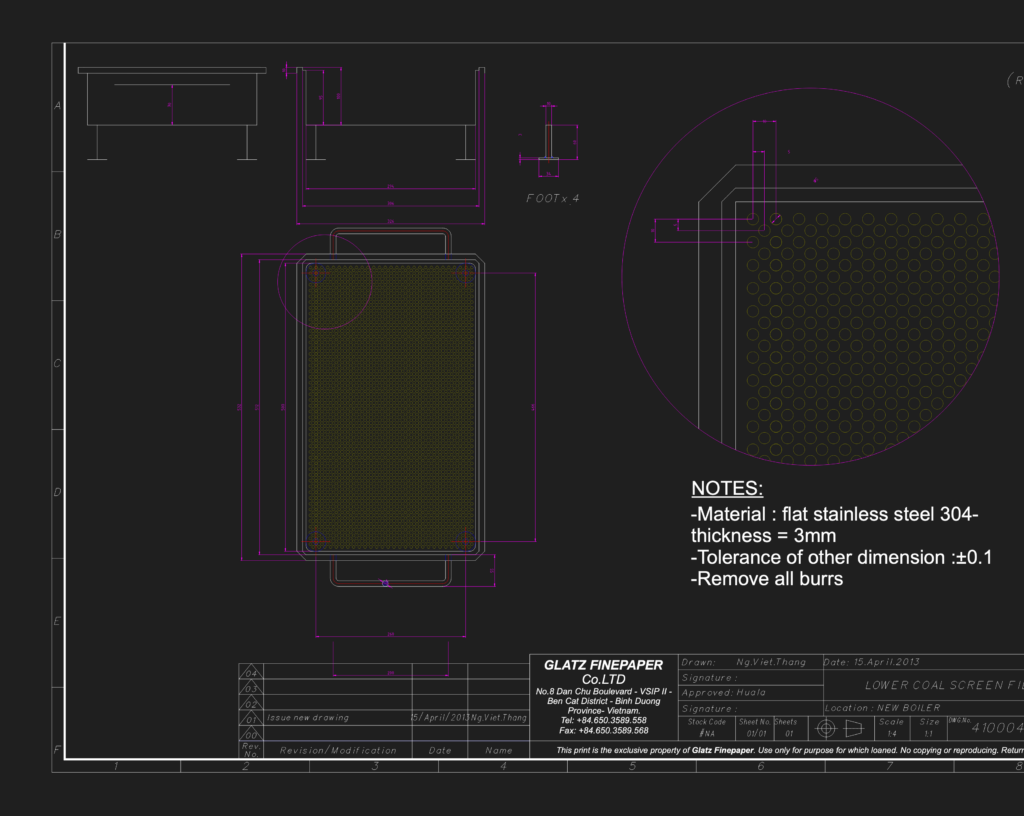

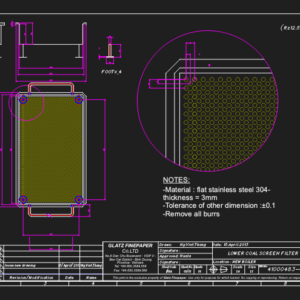

Fabrication details for upper and lower coal screen filters, a 10dm3 capacity coal bowl and tray for a boiler system. Components are 3mm thk. flat stainless steel 304 with ±0.1mm tolerances and required burr removal. Includes perforated patterns, foot mounting details, and assembly section views for industrial boiler components.
Coal Screen Filter and Boiler Tray Fabrication Details
