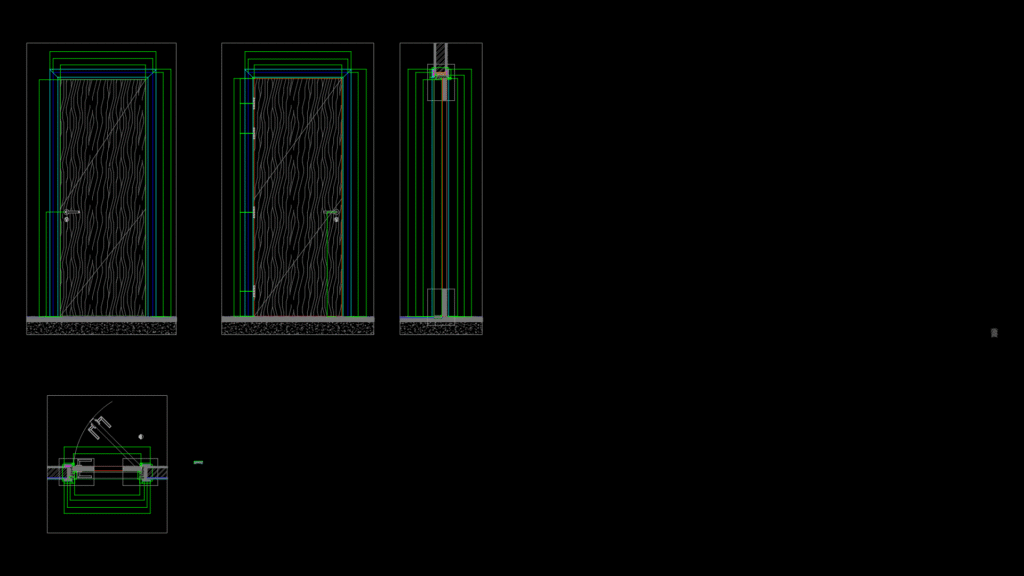

This detialed shop drawing presents a complete toilet door system for retail applications, featuring a wood veneer door with textured finish. The assembly includes elevation, section, and plan views with comprehensive hardware specifications. The door measures approximately 3′ wide by 7′ high (914mm × 2134mm) with a thickness of 45mm, mounted within a metal frame system. Hardware components include commercial-grade hinges, a standard latch mechanism, and door stops. The door sits flush with finished floor level (0.00+) with proper clearances for ADA compliance. The door assembly incorporates a subframe with architrave detailing and proper sealing elements around the perimeter. This design balances aesthetic requirements with the durability needs of commercial retail bathroom applications, utilizing moisture-resistant materials suitable for wet environments.
Commercial Retail Toilet Door Assembly with Wood Veneer Finish
