Commercial Storefront Elevation with LED Displays and Stone Cladding

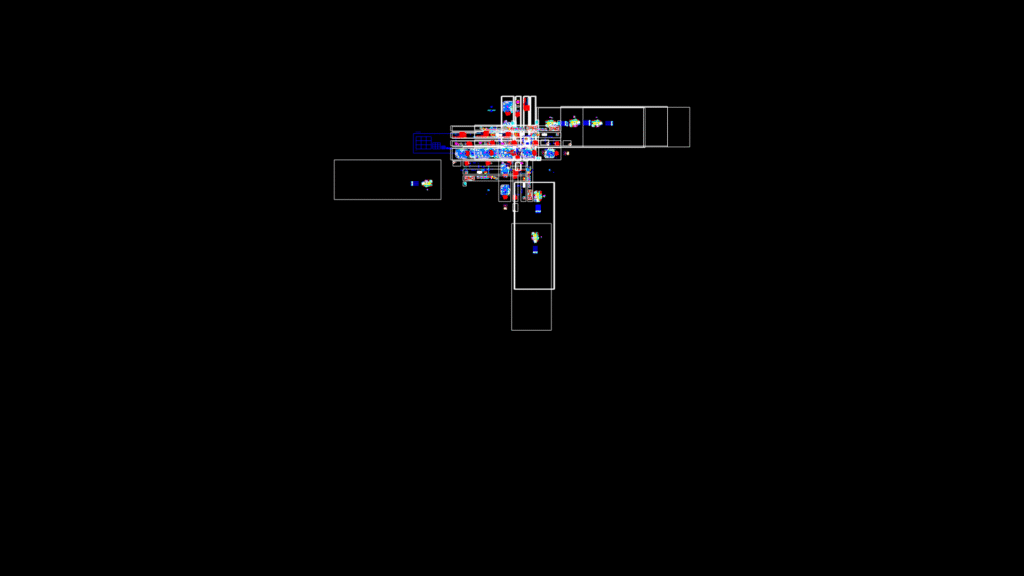

Detailed architectural elevation drawings for the Palacio de Hierro Santa Fe retail store entrances from the plaza level. The plans depict storefront interfaces across multiple levels (Planta Baja, Primer Nivel, Segundo Nivel) with the following key elements:

Entrance Features:
– Custom stone-clad portal frames (4cm thickness) with integrated LED display systems
– Floor-to-ceiling LED monitor walls in 2×5 configuration using 49″ and 98″ displays
– Vitrines with low-iron clear glass and operable access panels
– Pin-mounted signage with backlit LED illumination

Technical Specifications:

– Portal opening height: 3.18m from mall finished floor
– Overall ceiling height: 4.20m AFF at mall ceiling
– Wall panel reveals and metal edge trim details for stone transitions
– Coordinated floor transitions between mall and store finishes (65mm alignment)
– Minimum 750mm clearance behind LED displays for access/maintenance

Drawings include both enlarged plans (1:25 scale) and typical sections (1:10 scale) showing construction details for the stone wall systems, LED mountings, and vitrine assemblies. The design was coordinated with mall management in 2017 for proper integration with adjacent storefronts.
