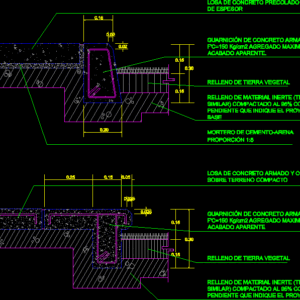

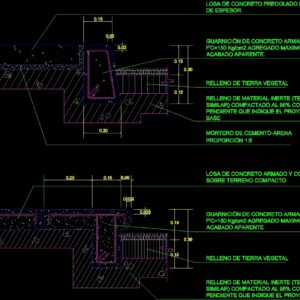

Concrete Sidewalk DWG Block for AutoCAD

Concrete Sidewalk DWG Block for AutoCAD

bench H º A º

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

precast concrete slab of thickness, reinforced concrete lining added maximum apparent finish., landfill, filling of inert material compacted to the slope indicated by the base project, proportion mortar, reinforced concrete slab cast on compact ground, reinforced concrete lining aggregate maximum apparent finish, landfill, filling inert material compacted to the slope indicated by the project

Raw text data extracted from CAD file:

0.10 0.20 0.15 0.02 0.02 0.15 0.15 0.30 0.20 0.10 0.20 0.25 0.15 0.05 0.025 0.025 0.15 0.15 0.30 0.10 0.20 5 5 0.02 5 5 0.30 0.20 LOSA DE CONCRETO PRECOLADO DE 10cm DE ESPESOR GUARNICIÓN DE CONCRETO ARMADO F'C=150 Kg/cm2 AGREGADO MAXIMO 3/4" ACABADO APARENTE. RELLENO DE TIERRA VEGETAL RELLENO DE MATERIAL INERTE (TEPETATE O SIMILAR) COMPACTADO AL 95% CON LA PENDIENTE QUE INDIQUE EL PROYECTO BASE MORTERO DE CEMENTO-ARENA PROPORCIÓN 1:5 0.10 0.20 5 5 5 0.025 0.025 5 0.15 0.30 LOSA DE CONCRETO ARMADO Y COLADA SOBRE TERRENO COMPACTO GUARNICIÓN DE CONCRETO ARMADO F'C=150 Kg/cm2 AGREGADO MAXIMO DE 3/4" ACABADO APARENTE RELLENO DE TIERRA VEGETAL RELLENO DE MATERIAL INERTE (TEPETATE O SIMILAR) COMPACTADO AL 95% CON LA PENDIENTE QUE INDIQUE EL PROYECTO

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, bench, béton armé, block, concrete, DWG, formwork, reinforced concrete, schalung, seat, sidewalk, stahlbeton
