Construction Detail DWG Detail for AutoCAD

Retaining wall – brick wall – union pool wall

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

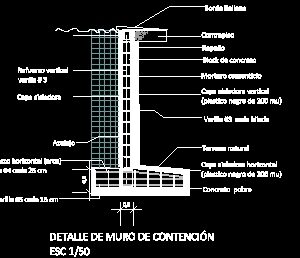

underfloor, whale border, concrete block, natural terrain, poor concrete, black horizontal insulating layer of, cement mortar, vertical black insulating layer of, rod each row, repello, tile, horizontal reinforcement rod each cm, vertical rod reinforcement, rod each cm, insulating layer, concrete block, natural terrain, poor concrete, black horizontal insulating layer of, cement mortar, vertical black insulating layer of, rod each row, repello, horizontal reinforcement rod each cm, vertical rod reinforcement, rod each cm, insulating layer, retaining wall detail, dipstick, poor concrete, black insulating layer of, tile, double mesh each, insulating layer, natural terrain, retaining wall detail esc, detail of union wall with pool floor

Raw text data extracted from CAD file:

0,5 0,3 Contrapiso Borde Ballena Block de concreto Terreno natural Concreto pobre Capa aisladora horizontal (plastico negro de 200 mu) Mortero cementicio Capa aisladora vertical (plastico negro de 200 mu) Varilla #3 cada hilada Repello Azulejo Refuerzo horizontal (aros) varilla #4 cada 25 cm Refuerzo vertical varilla # 3 Varilla #5 cada 15 cm Capa aisladora 5 5 0,5 0,3 Block de concreto Terreno natural Concreto pobre Capa aisladora horizontal (plastico negro de 200 mu) Mortero cementicio Capa aisladora vertical (plastico negro de 200 mu) Varilla #3 cada hilada Repello Refuerzo horizontal (aros) varilla #4 cada 25 cm Refuerzo vertical varilla # 3 Varilla #5 cada 15 cm Capa aisladora 5 5 DETALLE DE MURO DE CONTENCIÓN 0,18 0,1 0,4 0,5 Varilla #5 Concreto pobre 10cm Capa aisladora horizonta(plastico negro de 200 mu) Azulejo Doble malla electro-soldadavarilla 1/2″ cada 10cm Capa aisladora Terreno natural 5 5 5 5 DETALLE DE MURO DE CONTENCIÓN ESC 1/50 DETALLE DE UNIÓN MURO CON SUELO DE LA PISCINA
