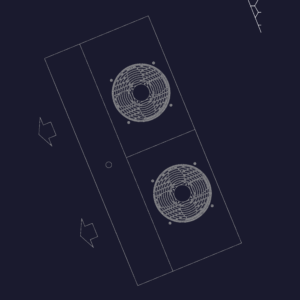

Cooling fan unit detail and small building partition plan. The fan part shows the protective circular grill, mounting points, and the square frame housing. It’s a standard top view for electronic cooling or small HVAC equipment. The architectural part is a simple layout with interior walls and doors. Layers are in French, mostly under “BATIMENT CLOISON”.DWG is compatible with AutoCAD 2013 and up.
Cooling Fan Grill and Building Partition Plan DWG
