Covers DWG Detail for AutoCAD

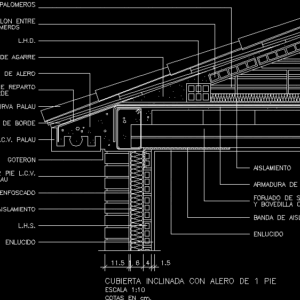

Details slope covers with eaves 1 foot

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

goteron, edge wedge, l.c.v. palau, isolation, negative armor, insulation band, plaster, Ceramic vault, forged half-jointed, palau, foot l.c.v., plaster, l.h.s., plastered, isolation, dimensions in cm., scale, sloping roof with foot eave, roof tile palau, eave zuncho, gripping mortar, l.h.d., partition walls, of l.h.d., palomeros, rasillon between, cast mesh, to edge

Raw text data extracted from CAD file:

11.5 6 4 1.5 \A1;1.5 \A1;6 \A1;4 \A1;11.5 GOTERON CALZO DE BORDE L.C.V. PALAU AISLAMIENTO ARMADURA DE NEGATIVOS BANDA DE AISLAMIENTO ENLUCIDO Y BOVEDILLA CERAMICA FORJADO DE SEMIVIGUETA PALAU 1/2 PIE L.C.V. ENLUCIDO L.H.S. ENFOSCADO AISLAMIENTO 1.5 1 6 4 COTAS EN cm. ESCALA 1:10 CUBIERTA INCLINADA CON ALERO DE 1 PIE 11.5 TEJA CURVA PALAU ZUNCHO DE ALERO MORTERO DE AGARRE L.H.D. TABIQUES PALOMEROS DE L.H.D. PALOMEROS RASILLON ENTRE MALLAZO DE REPARTO HASTA BORDE
