Cross Section DWG Section for AutoCAD

Cross Section DWG Section for AutoCAD

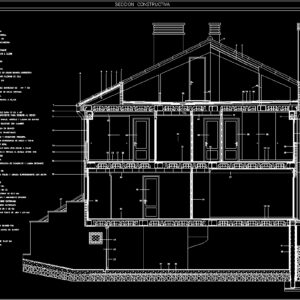

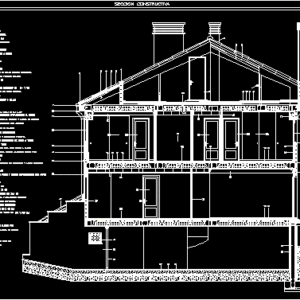

Cross Section – pan-and-roll tiling – Flat roof

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

polystyrene high density mm, the fireplace will have enough section to resist the wind, false plaster false ceiling fixed with wire, solid white lacquered wood door, angular metal, Ceramic vault cm., solid wood oak varnished cm, chimney mm grate of each cm, fixed white lacquered aluminum window, slope concrete, metal railing formed by tubes of, non-slip rustic stoneware cm, foot of rough solid brick plastered, convex smoke evacuation chimney, double sheet metal door interior insulation, metal grating formed by mm plates, Reinforced concrete wall cm, ceramic tile of cm, elastomer waterproofing sheet, gravel pitching cm, pvc sheet, polished concrete screed cm reinforced superiorly with, expanded polystyrene cm, drainage tube, asphalt laminating primer of oxasphalt draining sheet, gravel pitching, stoneware tile cm, simple wall made of fine grain drippable plasterboard, manufactures of half brick foot face color elejir, direct plasterboard term, built-in wardrobe for sliding doors of floor ceiling, Plaster molding in the master bedroom, Siphonic sump for transitable roofs, folded metal door for white lacquered swing, ceramic flashing, closed cell expanded polyethylene sheet, oak wood parquet, polystyrene high density mm, metal railing formed by metal bars, lacquered aluminum carpentry sliding white, plastic roller shutter, metal plate mm, cm anchor plate, reinforced concrete beam, Gutter type uraplast in color choose, folded sheet prelacada of auction, ipe metal straps, corrugated sheet galvanized mm, legend, concrete tile universal model, white concrete coping, constructive section, double twisted metal fabric, reinforced concrete slab cm, plasterboard, metal handle knob white lacquered, zahorra

Raw text data extracted from CAD file:

5 2 44 3 POLIESTIRENO ALTA DENSIDAD 40 MM LA CHIMENEA TENDRA SECCION SUFICIENTE PARA RESISTIR AL VIENTO 24 FALSO TECHO DE ESCAYOLA LISA SUJETADO CON ALAMBRE 25 PUERTA DE MADERA MACIZA LACADA EN BLANCO 21 ANGULAR METALICO 40.40.2 18 BOVEDILLA CERAMICA H= 24 CM. 16 RODAPIE MADERA MACIZA DE ROBLE BARNIZADO DE H= 7 CM 22 CHIMENEA d150 MM Y REJA DE 20.2 CADA 10 CM A 45° 49 VENTANA DE ALUMINIO LACADO EN BLANCO FIJA 48 HORMIGON DE PENDIENTE 47 BARANDILLA METALICA FORMADA POR TUBOS DE 46 GRES RUSTICO ANTIDESLIZANTE DE 30 X 30 CM 45 1/2 PIE DE LADRILLO MACIZO TOSCO ENFOSCADO 44 CHIMENEA DE EVACUACION DE HUMOS ENFOSCADA 43 PUERTA METALICA DE DOBLE CHAPA Y AISLAMIENTO INTERIOR 42 REJA METALICA FORMADA POR PLETINAS DE 20.2 MM 41 MURO DE HORMIGON ARMADO E= 30 CM 40 PLAQUETA CERAMICA DE 20 x 20 CM 19 LAMINA IMPERMEABILIZANTE ELASTOMERO 4 KG/M2 39 ENCACHADO DE GRAVA E= 35 CM 38 LAMINA DE PVC 37 SOLERA DE HORMIGON E= 25 CM PULIDA Y ARMADA SUPERIORMENTE CON d6/30 36 POLIESTIRENO EXPANDIDO E= 10 CM 35 TUBO DE DRENAJE 34 IMPRIMACION ASFALTICA, LAMINA ASFALTICA DE OXIASFALTO Y LAMINA DRENANTE 33 ENCACHADO DE GRAVA Y GRAVILLA 32 BALDOSA DE GRES DE 30 x 30 CM 31 TABIQUE SIMPLE DE PLADUR 13.46.13 PINTADO AL GOTELE GRANO FINO 30 FABRICA DE MEDIO PIE DE LADRILLO CARA VISTA COLOR A ELEJIR 29 TRASDOSADO DIRECTO DE PLADUR TERM 28 ARMARIO EMPOTRADO DE PUERTAS CORREDERAS DE SUELO A TECHO 27 MOLDURA DE ESCAYOLA EN SALON Y DORMITORIO PRINCIPAL 26 SUMIDERO SIFONICO PARA AZOTEAS TRANSITABLES 23 PUERTA METALICA PLEGADA PARA GARAJE, ABATIBLE Y LACADA EN BLANCO 20 VIERTEAGUAS CERAMICO 17 LAMINA DE POLIETILENO EXPANDIDO DE CELDA CERRADA 15 PARQUET DE MADERA DE ROBLE 14 POLIESTIRENO ALTA DENSIDAD 20 MM 13 BARANDILLA METALICA FORMADA POR PLETINAS DE 20.2 12 CARPINTERIA DE ALUMINIO LACADO EN COLOR BLANCO CORREDERA 11 PERSIANA ENROLLABLE DE PLASTICO 10 PLETINA METALICA DE E= 3 MM 9 PLACA DE ANCLAJE DE 12.12.2 CM 8 VIGA DE HORMIGON ARMADO 7 CANALON TIPO URAPLAST EN COLOR A ELEGIR 6 CHAPA PLEGADA PRELACADA DE REMATE 5 CORREAS METALICA IPE 100 4 CHAPA ONDULADA E= 0,6 MM GALVANIZADA 28 15 16 16 15 29 30 53 19 46 30 21 20 46 11 45 7 12 30 10 22 1 d50 Y d30 MM 54 41 LEYENDA 2 TEJA DE HORMIGON MODELO UNIVERSAL 1 ALBARDILLA DE HORMIGON BLANCO SECCION CONSTRUCTIVA 47 30 49 20 13 12 11 10 7 23 42 30 37 39 38 54 TELA METALICA DE DOBLE TORSION 53 SOLERA DE HORMIGON ARMADO DE E=20 CM 52 TRASDOSADO DE PLADUR 50 PICAPORTE DE MANETA METALICA LACADA EN BLANCO 52 41 35 34 51 ZAHORRA 35 32 24 29 28 15 16 17 50 25 25 18 1 27 6 5 4 3 2 8 25 40 31 32 25 27 32 43 26 24 31 48 3 19

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete, Plastic, Wood
Measurement Units
Footprint Area
Building Features	Fireplace
Tags	autocad, construction details section, cross, cut construction details, DWG, flat, roof, section
