Detail Of Elevator DWG Section for AutoCAD

Detail Of Elevator DWG Section for AutoCAD

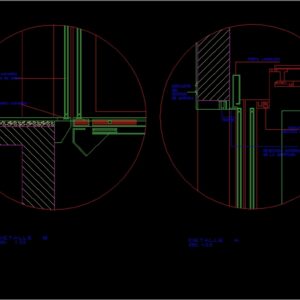

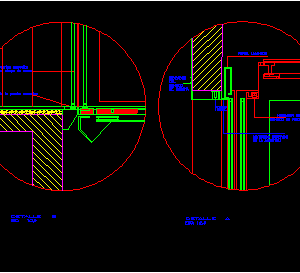

Detail of elevator – Contact with floor – Sections

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

esc:, detail, of the sliding door, sliding in sheet steel, esc:, detail, top of the opening, of the direction of travel, laminate, of floor sense

Raw text data extracted from CAD file:

ESC: 1:2,5 DETALLE B \A1;carriles de la puerta corrediza \A1;puertas corrediza en chapa de acero ESC: 1:2.5 DETALLE A \A1;REVESTIDO SUPERIOR DE LA ABERTURA \A1;INDICADOR DEL SENTIDO DE MARCHA \A1;PERFIL LAMINADO \A1;TIMBRE \A1;INDICADOR DE SENTIDO DE PISO

Language	Spanish
Drawing Type	Section
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Steel
Measurement Units
Footprint Area
Building Features	Elevator
