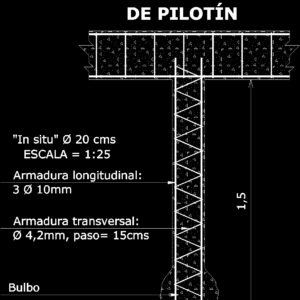

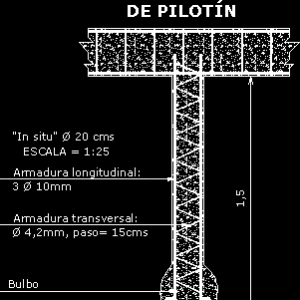

Detail Small Pile DWG Section for AutoCAD

Section with technical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

scale, bulb, transverse reinforcement:, longitudinal reinforcement:, cms, pilot’s detail

Raw text data extracted from CAD file:

1,5 5 ESCALA = 1:25 Bulbo Armadura transversal: Ø 4,2mm, paso= 15cms Armadura longitudinal: 3 Ø 10mm “In situ” Ø 20 cms DETALLE DE PILOTÍN
