Detail Terrace With Insulation DWG Section for AutoCAD

Detail Terrace With Insulation DWG Section for AutoCAD

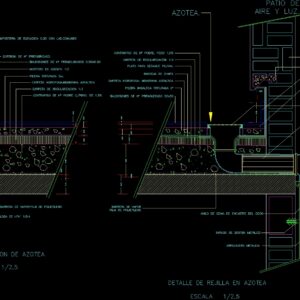

Section by terrace with pluvial drainage

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Roof insulation detail, scale, Roof detail grid, scale, Vapor barrier: polyethylene film, Slab of hua, Vapor barrier polyethylene film, Metal support rod, Metal clamp, Elbow rubber anilox, Pre-molded basement tiles, Waterproof folder: asphaltic membrane, Poor hr subfloor, Crushed stone, Prefabricated hose goteron, Lifting masonry with lad.comunes, Seat mortar, Regularization folder, Preformed hinged tiles, Poor hº subfloor. Pend, Regularization folder, Rainwater drain pan, Waterproof folder: asphaltic membrane, Crushed basaltic stone, Sheet metal tray, White pvc elbow, PVC pvc pipe mm, Patio grille for rainwater drainage, Seat mortar, Pre-molded concrete socle, Prefabricated concrete goteron, Elliptical masonry with common bricks two, Of light air.

Raw text data extracted from CAD file:

\A1;0.10 \A1;0.02 \A1;0.18 \A1;0.01 \A1;0.16 \A1;0.12 \A1;0.06 \A1;0.10 \A1;0.02 \A1;0.15 \A1;0.05 \A1;0.03 \A1;0.03 \A1;0.01 \A1;0.04 \A1;0.04 \A1;0.02 \A1;0.04 \A1;0.07 \A1;0.01 \A1;0.03 \A1;0.04 \A1;0.10 0.0 5 DETALLE DE AISLACION DE AZOTEA ESCALA 1/2,5 DETALLE DE REJILLA EN AZOTEA ESCALA 1/2,5 BARRERA DE VAPOR:FILM DE POLIETILENO LOSA DE HºAº 1:2:4 0.0 0.0 5 BARRERA DE VAPOR FILM DE POLIETILENO 0.02 TARUGO DE SOSTEN METÁLICO ABRAZADERA METALICA ANILO DE GOMA DE ENCASTRE DEL CODO 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 BALDOSONES DE Hº PREMOLDEADOS 0.50X0.50 CARPETA HIDROFUGA:MEMBRANA ASFALTICA CONTRAPISO DE Hº POBRE C/PEND. DE 1,5% 0.0 PIEDRA TRITURADA 5ta. GOTERON DE Hº PREFABRICADO MAMPOSTERIA DE ELEVACION 0.30 CON LAD.COMUNES MORTERO DE ASIENTO 1:3 CARPETA DE REGULARIZACION 1:3 BALDOSONES DE Hº PREMOLDEADO 50x50 5 5 -1.0 5 CONTRAPISO DE Hº POBRE. PEND 1,5% CARPETA DE REGULARIZACIÓN 1:3 PLATO PARA DESAGUE PLUVIAL CARPETA HIDROFUGA: MEMBRANA ASFALTICA PIEDRA BASALTICA TRITURADA 5ª BANDEJA DE CHAPA 5 5 CODO 90º DE PVC BLANCO d100mm CAÑO DE PVC BLANCO d100 mm REJILLA DE PATIO PARA DESAGUE PLUVIAL 20x20 MORTERO DE ASIENTO 1:3 ZOCALO DE HORMIGON PREMOLDEADO GOTERON DE HORMIGON PREFABRICADO MAMPOSTERIA DE ELVACION 0.30 CON LADRILLOS COMUNES DOS 1:1:12 \A1;AZOTEA. \A1;PATIO DE AIRE Y LUZ.

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Masonry
Measurement Units
Footprint Area
Building Features	Deck / Patio, Car Parking Lot
Tags	autocad, barn, cover, dach, DETAIL, drainage, DWG, hangar, insulation, lagerschuppen, pluvial, roof, section, shed, structure, terrace, terrasse, toit
