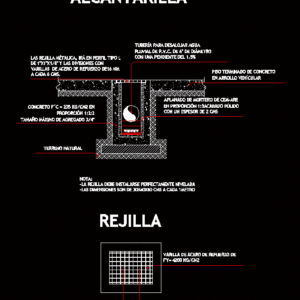

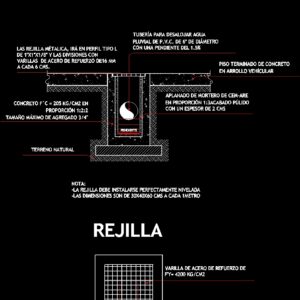

Detail sewer

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Steel reinforcing rod, Finished concrete floor in vehicle development, natural terrain, Flattening of mortar of polished proportion with a thickness of cms, The grille will go in profile type of the divisions with reinforcing steel rods mm each cms., pending, Pipe to evacuate pluvial water from p.v.c. Of diameter with a slope of, Note: grid must be installed perfectly level dimensions are cms each, Concrete in proportion maximum size of aggregate, sewer, rack

Raw text data extracted from CAD file:

VARILLA DE ACERO DE REFUERZO DE F'Y= 4200 KG/CM2 PISO TERMINADO DE CONCRETO EN ARROLLO VEHÍCULAR TERRENO NATURAL APLANADO DE MORTERO DE CEM-ARE EN PROPORCIÓN 1:3ACABADO PÚLIDO CON UN ESPESOR DE 2 CMS LAS REJILLA MÉTALICA, IRÁ EN PERFIL TIPO L DE 1"X1"X1/8" Y LAS DIVISIONES CON VARILLAS DE ACERO DE REFUERZO DE16 MM A CADA 6 CMS. PENDIENTE TUBERÍA PARA DESALOJAR AGUA PLUVIAL DE P.V.C. DE 6" DE DIÁMETRO CON UNA PENDIENTE DEL 1.5% NOTA: -LA REJILLA DEBE INSTALARSE PERFECTAMENTE NIVELADA -LAS DIMENSIONES SON DE 30X40X60 CMS A CADA 1METRO CONCRETO F´C = 205 KG/CM2 EN PROPORCIÓN 1:2:2 TAMAÑO MÁXIMO DE AGREGADO 3/4" ALCANTARILLA REJILLA

Language	Spanish
Drawing Type	Detail
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, DETAIL, details, DWG, kläranlage, sewer, treatment plant
