Technical specifications – Enclosed measures – Ramp of access vehicles

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

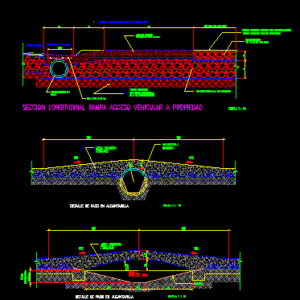

detail of passage in sewer, concrete sidewalk, water level, grass, longitudinal section ramp vehicular access to property, public street, cordon and pipe, concrete sidewalk, stabilized base, second asphalt primer white stone layer, first asphalt primer brute stone , compacted subgrade, compacted terrain, _int, _end, _mid, _cen, _node

Raw text data extracted from CAD file:

1 1 \A1;15 \A1;150 \A1;150 \A1;80 \A1;20 \A1;80 NPT 0+0.175 \A1;20cm profundidad máxima \A1;19 \A1;R220 DETALLE DE PASO EN ALCANTARILLA 5 5 5 10% 10% ACERA CONCRETO 175KG/CM2 ESCALA 1 : 15 5 5 5 NIVEL DEL AGUA <>cm profundidad máxima ZACATE 5 R220 \A1;.5 \A1;60 \A1;1.5 \A1;_INT,_END,_MID,_CEN,_NODE \A1;.15 \A1;.3 \A1;40CM SECCION LONGITUDINAL RAMPA ACCESO VEHICULAR A PROPIEDAD ESCALA 1 : 10 5 CALLE PUBLICA CORDON Y CAÑO ACERA A RECONSTRUIR 2.00 MT ANCHO NETO 60 5 ACERA DE CONCRETO 210 KG/cm2, 15 CM ESPESOR SUB-BASE ( CBR-30 AL 95% MODIFICAD0) (BE 25 DEL CR 2002 MOPT) BASE ESTABILIZADA SEGUNDA IMPRIMACION ASFALTICA CAPA DE PIEDRILLA BLANCA PRIMERA IMPRIMACION ASFALTICA PIEDRA BRUTA 91 % DEL PROCTOR STANDARD SUB-RASANTE COMPACTADA AL TERRENO COMPACTADO _INT,_END,_MID,_CEN,_NODE 5 5 TUBERIA CONCRETO C14 25cmd MALLA #5 @ 10 cm A.D. 40CM
