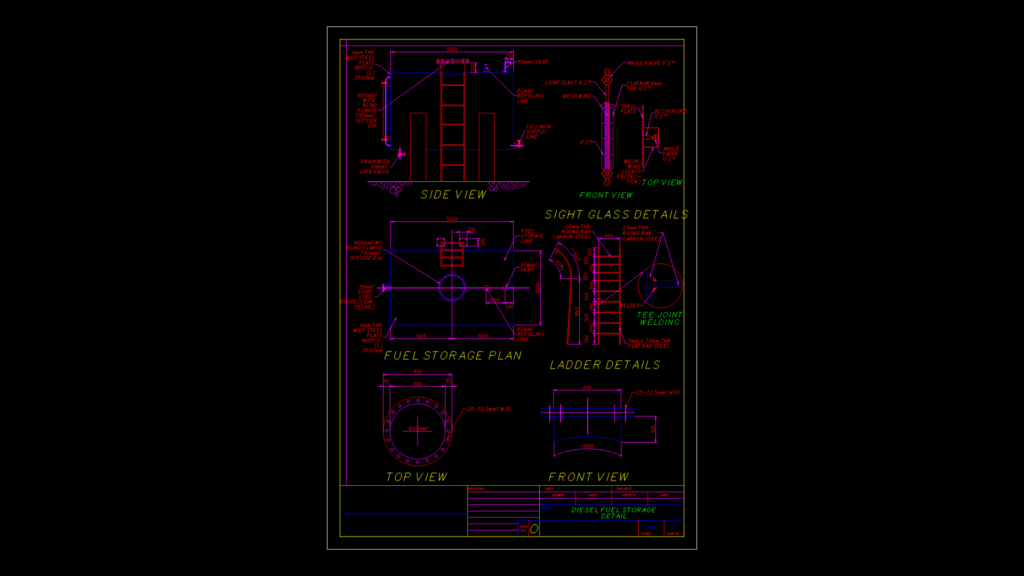

This comprehensive detail drawing illustrates a cylindrical diesel fuel storage tank with multiple critical components. The drawing presents side, front, and top views of the main tank structure featuring a 600mm diameter carbon steel construction. Key elements include precisely detailed sight glass assemblies for fluid level monitoring, complete with isolation valves and mounting brackets. The access ladder design incorporates 25mm thick round bar rungs with tee joint welding specifications for safety and durability. The fuel storage plan illustrates inlet/outlet connections, venting systems, and foundation mounting points. All components are fabricated from carbon steel with specific welding requirements noted for critical joints. The tank includes overflow protection, appropriate venting, and necessary access points for maintenance. The detailed dimensional layout accommodates proper installation with sufficient clearances for operation and servicing in industrial environments.
Diesel Fuel Storage Tank Detail Drawing with Sight Glass & Ladder
