Eave DWG Section for AutoCAD

Eave DWG Section for AutoCAD

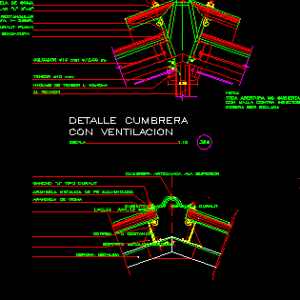

Eave detail with and with out ventilation – Sections – Technical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

without ventilation, scale, with ventilation, scale, ridge detail, galvanized metal washer of faith, rubber washer, Duralit type hook, Tension anchor, rubber washer, metal truss, welded metal bracket, Tensioner mm., hanger mm m., flat fiber duralit top, welding, cm., rectangular tube, Duralit type hook, millimeter cm, frame with mesh against insects, articulated ridge, angular, any opening not covered, note:, with mesh against insects, it should be sealed, galvanized metal washer of faith, articulated ridge top wing, coastal belt, cover plate espaniola duralit

Raw text data extracted from CAD file:

SIN VENTILACION ESCALA 1 :10 CON VENTILACION ESCALA 1.10 DETALLE CUMBRERA DETALLE CUMBRERA 366 367 ARANDELA METALICA DE FE GALVANIZADO ARANDELA DE GOMA GANCHO "J" TIPO DURALIT ANCLAJE DE TENSOR L 40x40x4 ARANDELA DE GOMA 10 10 CERCHA METALICA SOPORTE METALICO SOLDADO TENSOR d10 mm. COLGADOR d10 mm c/2.00 m. 2L 40x40x4 0.20 10 10 TAPA FIBRA DURALIT PLANA SOLDADURA 20x40 cm. l= 28cm. TUBO RECTANGULAR GANCHO "J" TIPO DURALIT MILIMETRICA 78x 25 cm. BASTIDOR CON MALLA CONTRA INSECTOS CUMBRERA ARTICULADA ANGULAR "L" 2"x2" TODA ABERTURA NO CUBIERTA NOTA: CON MALLA CONTRA INSECTOS DEBERA SER SELLADA ARANDELA METALICA DE FE GALVANIZADO CUMBRERA ARTICULADA ALA SUPERIOR CORREA Y O COSTANERA L=2.44 A=1.10 e=6mm CUBIERTA PLACA ESPANIOLA DURALIT

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, cover, dach, DETAIL, DWG, eave, hangar, lagerschuppen, roof, section, sections, shed, specifications, structure, technical, terrasse, toit, ventilation
