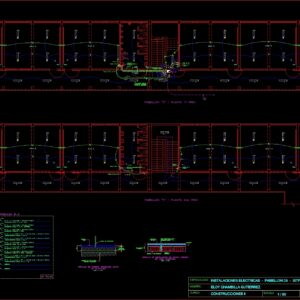

Electric installation of 2 floors pavilion

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Typsa tegepsa, consortium, reviewed, Unit head, design, Location, scale, date, sheet, system, school, plane of, National institute of educational health infrastructure, code, responsable, drawing, Arq, Arq. Jorge kanashiro h., Arq. Humberto reyes t., Arq., Compacted, Lightened brick, Detail of installation of new pipe in slab lightened esc, New built-in slab underfloor, Octagonal box, plaster, Finished floor finish, lightened slab, Underfloor, classroom, Floor floor pavilion, Electrical outlets, Tw tw mm, Electrical outlets, Tw tw mm, Luminaire, Tw mm, Lighting classes, Tw tw mm, Floor lighting, Tw mm, Switchboard, Lighting classes deposit, Tw tw mm, Poles, Lighting classes, reservation, Electrical outlets, Electrical outlets, Tw mm, reservation, Tw mm, Lighting classes s.h., classroom, See attachment detail of pipe crossing expansion joint, They climb, goes up, They climb, they come, goes up, comes, Npt path, Pipe with electric circuit, Detail of pipe crossing expansion joint, dilatation meeting, Compacted ground, box of, comes, they come, Snpt box, box of, course:, specialty, first name:, Electrical installations pabellon istpjcm, Constructions ii, Eloy chambilla gutierrez, scale, date, flat:

Raw text data extracted from CAD file:

TYPSA - TEGEPSA Consorcio REVISADO JEFE UNIDAD V°B° DISEÑO UBICACION ESCALA FECHA LAMINA SISTEMA CENTRO EDUCATIVO PLANO DE Instituto Nacional de Infraestructura Educativa y de Salud CODIGO RESPONSABLE DIBUJO N N N N N N N N ARQ N N 1/XYZ MES-19XY BL-AX-0001 ARQ. JORGE KANASHIRO H. ARQ. HUMBERTO REYES T. ARQ. AB-XY T P \A1;.30 \A1;VEREDA \A1;TERRENO COMPACTADO \A1;0.25 LADRILLO ALIGERADO DETALLE DE INSTALACION DE NUEVA TUBERIA EN LOSA ALIGERADA ESC : 1/25 NUEVA TUBERIA 20mmØ PVC-P (ALUMBRADO) EMPOTRADA EN CONTRAPISO DE LOSA CAJA OCTOGONAL -5.020917858487067 ENLUCIDO ACABADO FINAL DE PISO LOSA ALIGERADA H=0.25m CONTRAPISO AULA 6 AULA 5 AULA 4 AULA 3 AULA 2 AULA 9 AULA 8 AULA 10 AULA 11 AULA 12 AULA 7 PABELLON "C" : PLANTA 1ª PISO PABELLON "C" : PLANTA 2do PISO 66 a a b b c c d d e e f f g g i i j j k k L L m m n n TD-3 2Sa,b 2Sc,d Sg 2Si,j 2Sk,L 2Sm,n Sh 2Se,f h 2 x 20 A TOMACORRIENTES AULAS 10 ,11 y 12 TW 2 - 1 x 4 mm2 + TW 1 x 2.5 (T) mm2 - 20 mm d PVC-P 2 x 20 A TOMACORRIENTES AULAS 7 ,8 y 9 TW 2 - 1 x 4 mm2 + TW 1 x 2.5 (T) mm2 - 20 mm d PVC-P ALUMBRADO PASADIZO 2° PISO Y ESCALERA 2 x 15 A TW 2 - 1 x 2.5 mm2 - 20 mm d PVC-P TW 2 - 1 x 2.5 mm2 - 20 mm d PVC-P ALUMBRADO AULAS 10 ,11 y 12 2 x 15 A 2 x 15 A TW 2 - 1 x 4 mm2 + TW 1 x 2.5 (T) mm2 - 20 mm d PVC-P ALUMBRADO PASADIZO 1° PISO TW 2 - 1 x 2.5 mm2 - 20 mm d PVC-P 2 x 15 A TABLERO DE DISTRIBUCION TD-3 3 x 50 A TD-3 ALUMBRADO AULAS 4 ,5 ,6 y DEPOSITO TW 2 - 1 x 4 mm2 + TW 1 x 2.5 (T) mm2 - 20 mm d PVC-P C-8 C-7 C-6 C-5 2 x 20 A C-4 C-2 C-3 30 POLOS 2 x 15 A 2 x 15 A ALUMBRADO AULAS 1 ,2 ,3 y S.H, C-1 C-11 C-10 C-9 RESERVA TOMACORRIENTES AULAS 1 ,2 y 3 2 x 20 A TOMACORRIENTES AULAS 4 ,5 y 6 TW 2 - 1 x 2.5 mm2 - 20 mm d PVC-P TW 2 - 1 x 2.5 mm2 - 20 mm d PVC-P C-12 RESERVA TW 2 - 1 x 2.5 mm2 - 20 mm d PVC-P ALUMBRADO AULAS 7,8 ,9 y S.H. AULA 1 a a b b c c d d 2Sc,d e 2Se,f f e f g g Sg i i j j k 2Si,j k L L 2Sk,L m m n n 2Sm,n 2Sa,b 3 Ver detalle adjunto de tubería cruzando junta de dilatación So C-3 Suben C-8 y C-6 C-8 C-1 C-2 C-5 C-4 P Sube C-9 C-9 C-6 C-8 3 P C-7 C-8 Suben C-7 y C-8 Vienen C-7 y C-8 C-7 C-8 o o o o o o o o o o o o o o Sp p p p p p p p p p p p p p p Sp P p P Sube C-10 C-10 Viene C-10 C-10 VEREDA NPT 16.09096237146878 TUBERÍA DE PVC-P CON CIRCUITO ELECTRICO DETALLE DE TUBERÍA CRUZANDO JUNTA DE DILATACIÓN \H0.1;\C3;ESC : 1/20 JUNTA DE DILATACION 16.09096237146878 TERRENO COMPACTADO C-1 Caja de 200x200x100mm h=2.20m C-6 Va C-1 C-8 Va C-3 C-9 C-6 Viene C-9 Vienen C-8 y C-6 Caja de 250x250x150mm h=0.30m SNPT Caja de 200x200x100mm h=2.20m C-3 C-4 C-4 C-3 CURSO: ESPECIALIDAD NOMBRE: INSTALACIONES ELECTRICAS - PABELLON C4 - ISTPJCM CONSTRUCCIONES II ELOY CHAMBILLA GUTIERREZ 24/11/09 ESCALA FECHA 1 / 50 PLANO:
