Elevated Tank Covered DWG Block for AutoCAD

Elevated Tank Covered DWG Block for AutoCAD

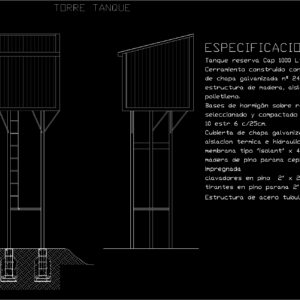

Tank water supply for home installation. Covered with sheet metal enclosure and roof with thermal insulation.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Tower tank, Specifications: tank cap lts reserve. Enclosure built with galvanized sheet coating No. on insulation structure with polyethylene film. Concrete bases on selected filler compacted structure str cover galvanized sheet metal thermal insulation with membrane type mm pine wood brushed parana impregnated pine nails struts in pine parana tubular steel structure

Raw text data extracted from CAD file:

\A1;3.41 \A1;1.91 5 5 TORRE TANQUE ESPECIFICACIONES: Tanque reserva Cap 1000 Lts. Cerramiento construido con revestimiento de chapa galvanizada nº 24 sobre estructura de madera, aislación con film polietileno. Bases de hormigón sobre relleno seleccionado y compactado Estructura Ø 10 estr 6 c/25cm. Cubierta de chapa galvanizada N° 24 aislacion termica e hidraulica con membrana tipo "isolant" x 4 mm madera de pino parana cepillada e impregnada clavadores en pino 2" x 2" tirantes en pino parana 2" x 4". Estructura de acero tubular \C256; Ø 2\H0.6664x;\S7#8;\H1.501x; ".\H0.7501x;

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, covered, DWG, einrichtungen, elevated, elevated tank, enclosure, facilities, gas, gesundheit, home, installation, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, metal, provision, roof, sheet, supply, tank, wasser bestimmung, water
