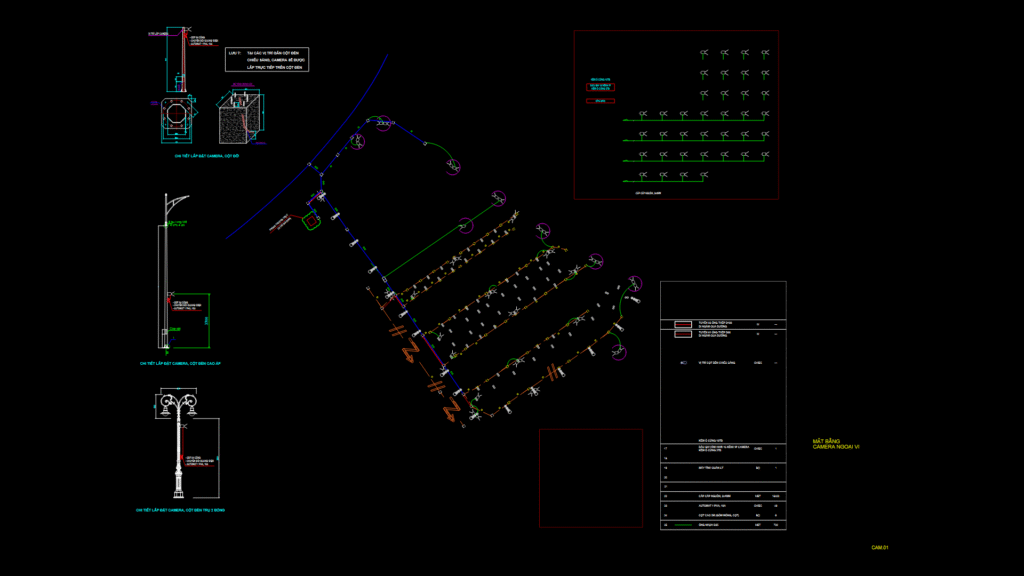

Comprehensive exterior CCTV surveillance system layout for the Thach Ban development project. The plan shows camera placement throughout the site with fiber optic connectivity to a central monitoring station.
Key components include:
– 46 fixed IP outdoor cameras with IP55 weatherproof enclosures
– 5-meter mounting poles with concrete foundation details
– Underground conduit system with 2×HDPE Φ130/100mm main ducts and Φ105/80mm branch ducts
– Central monitoring equipment: 32-channel NVR with 10TB storage, 48-port managed switch, and 43″ display monitors
– Fiber optic infrastructure using 4-core single-mode cable (18,400m total)
– 3kVA UPS backup power system
– Detailed mounting specifications for cameras on lighting poles and custom poles
The drawing includes cross-sectional details of pole foundations, cable access points, camera attachment methods, and system architecture diagrams showing signal path from cameras to the monitoring center.
