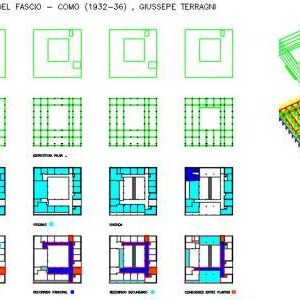

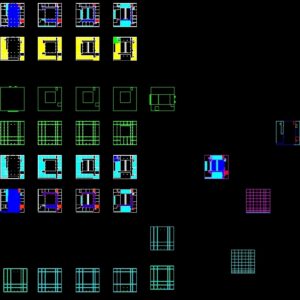

Fascio House – Study DWG Block for AutoCAD

La Casa del Fascio. The building is presented as a means perfect cube; 33 meters wide at the base and 16, 5 meters high. – Le Corbusier;

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

House of Fascio as Giussepe Terragni, accesses traveled, private spaces, pillar structure lintel, forged, main travel, secondary travel, Offices, living place, connections between plants, House of Fascio as Giussepe Terragni, forged, pillar structure, accesses traveled, private spaces, main travel, secondary travel, connections between plants, lintel projection, Offices, living place

Raw text data extracted from CAD file:

CASA DEL FASCIO – COMO (1932-36) , GIUSSEPE TERRAGNI ACCESOS – RECORRIDOS ESPACIOS PRIVADOS ESTRUCTURA PILAR – DINTEL FORJADOS RECORRIDO PRINCIPAL RECORRIDO SECUNDARIO OFICINAS VIVIENDA CONEXIONES ENTRE PLANTAS CASA DEL FASCIO – COMO (1932-36) , GIUSSEPE TERRAGNI FORJADOS ESTRUCTURA PILAR ACCESOS – RECORRIDOS ESPACIOS PRIVADOS RECORRIDO PRINCIPAL RECORRIDO SECUNDARIO CONEXIONES ENTRE PLANTAS PROYECCIÓN DINTEL OFICINAS VIVIENDA
