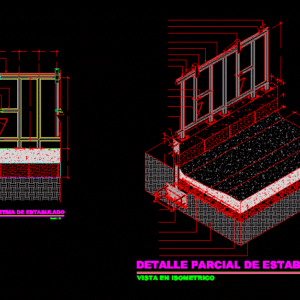

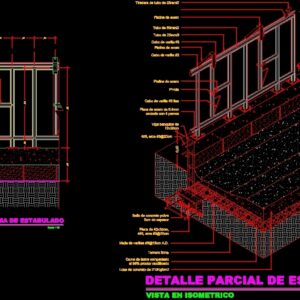

Feedlot Cattle DWG Detail for AutoCAD

Details – Specifications – axonometric

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

scale, viewnumber, sheetnumber, tagnumber, scale, scale, steel plate, rod cable, tube of, steel plate, pivot, flat rod cable, anchored steel plate with bolts, bench beam, tube puller, hoops, thick concrete seal, plate of hoops, wire mesh a.d., firm ground, bed of compacted ballast to the modified proctor, concrete slab, partial detail of housing, isometric view, unscaled, tube of, steel plate, pivot, steel plate, tube of, pivot, steel plate, banquette beam, concrete blocks of, firm ground, vertical tubes, dipstick, cable rod, detail of stabling system, scale

Raw text data extracted from CAD file:

Escala 1: VIEWNUMBER SHEETNUMBER TAGNUMBER ,20 ,48 ,30 0,50 ,80 ,12 ,20 ,12 Escala 1: ,20 ,15 Escala 1: ,25 ,27 ,30 ,85 ,13 ,25 ,40 ,98 ,40 Platina de acero Cabo de varilla #2 Cabo de varilla #3 Tubo de 25mmØ Tubo de 50mmØ Platina de acero Platina de acero Pivote Cabo de varilla #3 lisa Placa de acero de 6.4mm anclada con 4 pernos Viga banquina de 12x20cm Tiradera de tubo de 25mmØ 4#3, aros #3@20cm Sello de concreto pobre 5cm de espesor Placa de 40x25cm, 4#3, aros #3@20cm Malla de varillas #3@15cm A.D. Terreno firme Cama de lastre compactado al 95% proctor modificado Losa de concreto de 210Kg/cm2 ,20 ,48 ,30 0,50 ,80 ,12 ,20 ,12 DETALLE PARCIAL DE ESTABULADO VISTA EN ISOMETRICO Sin Escala ,20 ,15 5 5 5 5 5 5 5 5 5 Tubo de 50mmØ Platina de acero de 6.4mm Pivote Platina de acero Platina de acero Tubo de 50mmØ Tubo de 25mmØ Pivote Platina de acero Viga banquina Bloques de concreto de 12x20x40cm Terreno firme Tubos verticales 50mmØ varilla #3 Cabo varilla #2 DETALLE DE SISTEMA DE ESTABULADO Escala 1:15
