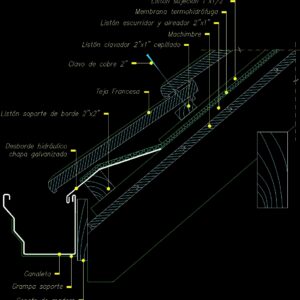

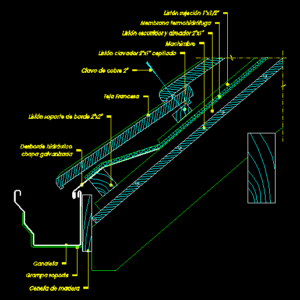

Detail with French tile eaves; insulation and gutter

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

date: april, line: tile, detail:, archive, scale, thermo-hydrophobic membrane, aerator squeegee strip, tie rod, brushed nail ribbon, machimbre, French tile, edge support strip, copper nail, wooden valance, staple support, channel, hydraulic overflow galvanized sheet, line: French tile calvu, detail: eaves with channel, fr eave with canaleta.dwg, scale

Raw text data extracted from CAD file:

C E R A M I C A S P O R C E L L A N A T O T E J A S C A L V U FECHA: Abril 2007 LINEA: TEJA DETALLE: ARCHIVO ESCALA 1:5 Membrana termohidrófuga Listón escurridor y aireador 2"x1" Listón sujeción 1"x1/2" Listón clavador 2"x1" cepillado Machimbre Teja Francesa Listón soporte de borde 2"x2" Clavo de cobre 2" Cenefa de madera Grampa soporte Canaleta Desborde hidráulico chapa galvanizada LINEA: TEJA FRANCESA CALVU DETALLE: ALERO CON CANALETA FR Alero con canaleta.dwg ESCALA 1:5
