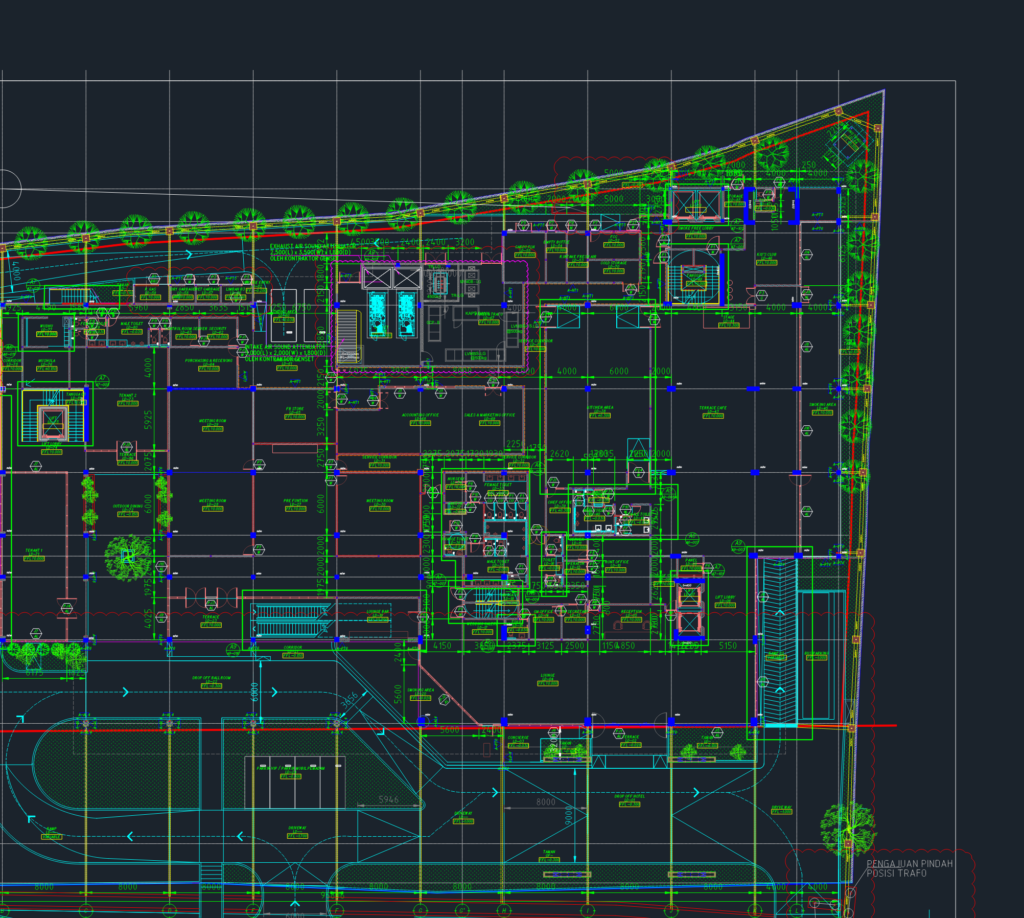

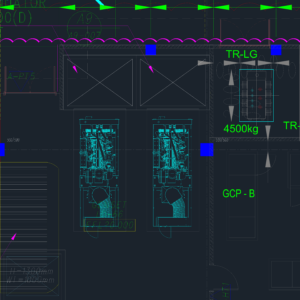

Ground floor layout for a large-scale commercial or hotel project. This drawing includes a comprehensive architectural floor plan, site landscaping, and specialized MEP zones. The utility area details a genset room with sound attenuators (intake 5,000 x 2,000 x 1,800mm; exhaust 2,500 x 3,500 x 1,800mm). Electrical infrastructure includes transformer rooms (TR-LG), MVMDB, and LVMBS panels. External site details cover hotel and ballroom drop-off zones, terrace cafe areas, and city drainage connections. Plans reflect city planning requirements, such as road widening and relocation of existing PLN transformers. All dimensions in mm; floor levels indicated via FFL and AFL notations. Denah lantai dasar untuk proyek hotel atau komersial skala besar dengan detail MEP lengkap

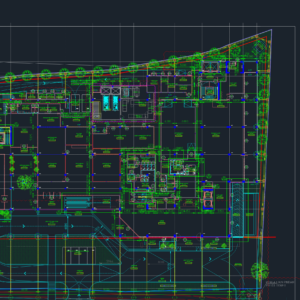

Ground floor architectural plan for a large commercial hotel project
