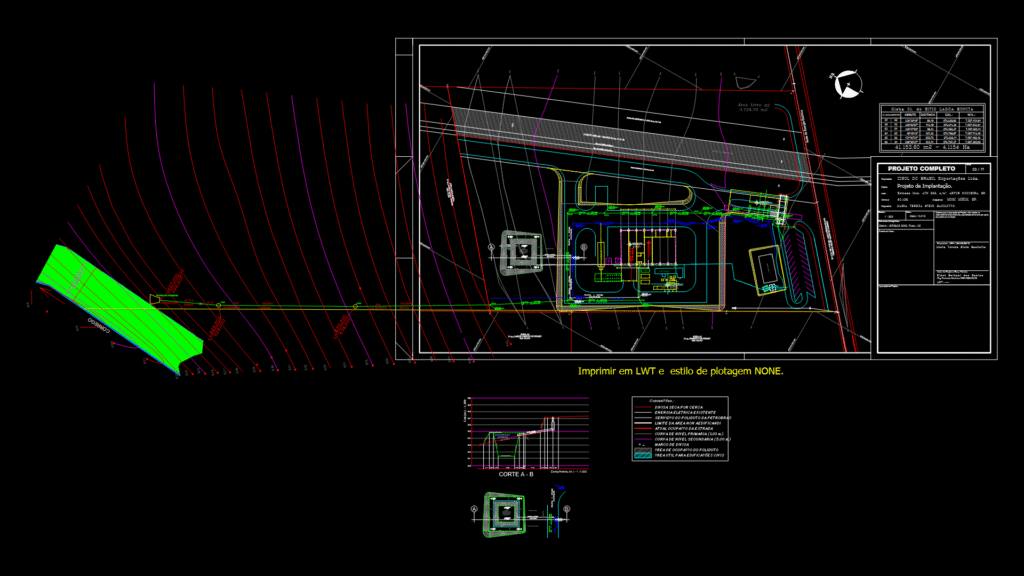

Site implementation plan for CISOL Brasil’s industrial facility in Artur Nogueira, SP, Brazil. This 41,153.60 m² (4.1154 hectare) property features comprehensive infrastructure including drainage systems, water supply, and wastewater management. Key elements include:
Site Constraints:
– Petrobras pipeline easement (20m width) with 15m non-buildable buffer zone
– Topographic contours at 1m intervals (elevations ranging 618-652m)
– Property boundaries with survey coordinates in SIRGAS 2000 datum
Infrastructure:
– Stormwater drainage system with pipes ranging 150-600mm diameter
– Water supply and fire protection network
– Sanitary and residual wastewater systems
– Retention ponds with 1:1, 1:2, and 1:3 slope ratios
– Electrical supply connections
Industrial Components:
– Main industrial warehouse with finished floor elevation 647.60m
– Equipment areas for evaporator, boiler, cold storage, and silos
– Water tank and well (elevation 650.90m)
– Office building (200m²)
– Truck scale with concrete platform
The plan includes soil boring locations, coordinate grid system, and utility connection points while accommodating existing environmental features.
