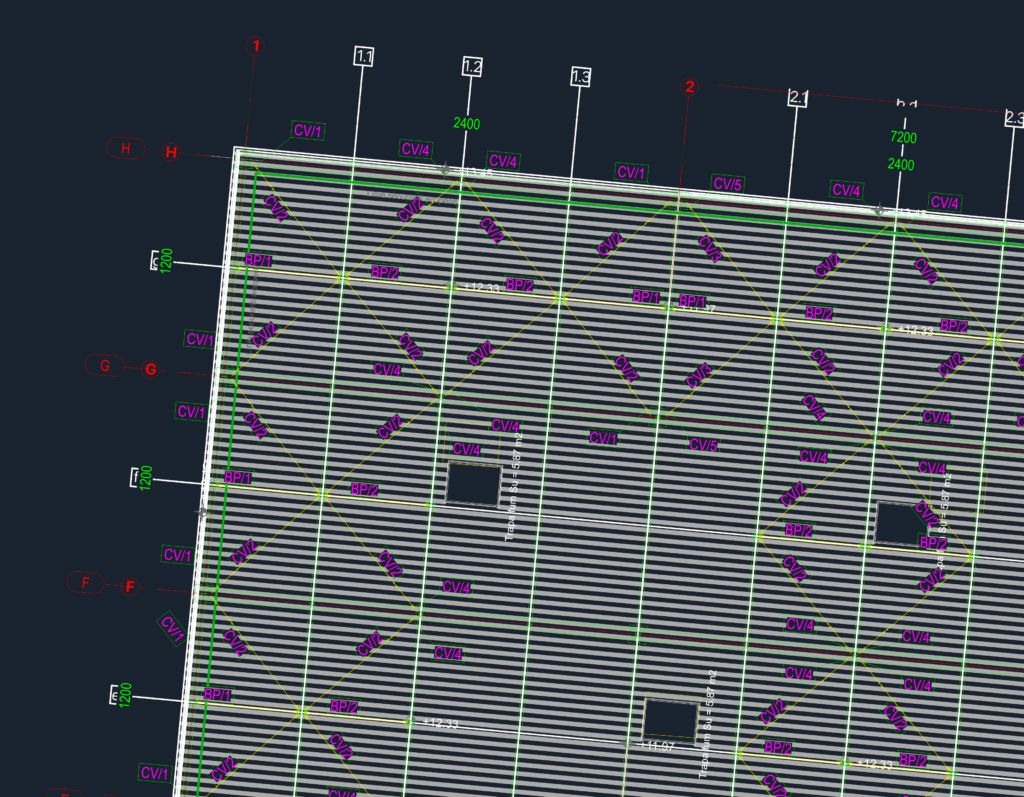

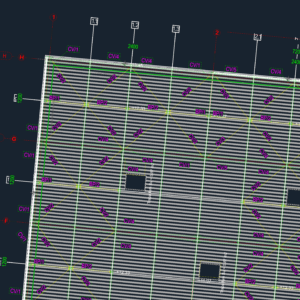

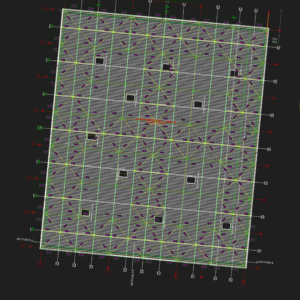

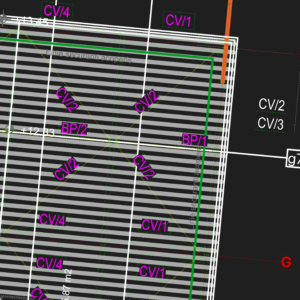

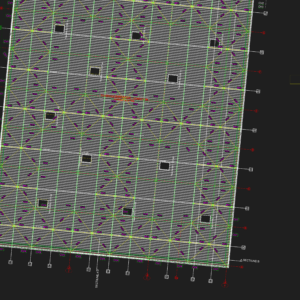

Roof framing layout for a large industrial storage & office facility. Shows the arrangement of metal elements like rafters and purlins, labeled CV1-CV5 & BP1-BP2. I’ve included the smoke exhaaust skylight positions (trapa fum) & sizes. Full grid layout with axes A-H and 1-4. Dimensions are mostly at 2400mm intervals. It covers the whole roof area at the +12.33m level.Plan dispunere elemente metalice acoperis pentru depozitare si sediu administrativ.
Industrial warehouse metal roof framing layout plan
