Insulation Of Facade DWG Full Project for AutoCAD

Thermal insulation projected ventilated facade – built

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

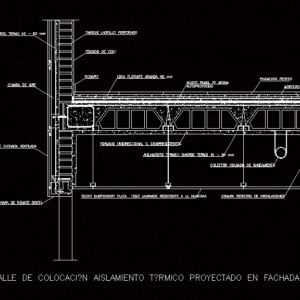

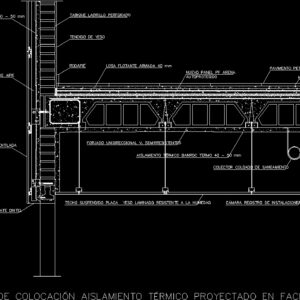

suspended ceiling plasterboard laminate moisture resistant, camera recording facilities, thermal insulation banroc termo mm, forged unidirectional v. semi-resistant, sewage collector, detail of installation thermal insulation projected on ventilated facade, oil floor, skirting board, grip mortar, floating floating slab mm, brick wall perforated, plaster laying, thermal insulation banroc termo mm, ventilated facade system, air chamber, lintel locking plate, new pf arena panel, self-protected

Raw text data extracted from CAD file:

TECHO SUSPENDIDO PLACA YESO LAMINADO RESISTENTE A LA HUMEDAD CÁMARA REGISTRO DE INSTALACIONES AISLAMIENTO TÉRMICO BANROC TERMO 40 - 50 mm FORJADO UNIDIRECCIONAL V. SEMIRRESISTENTES COLECTOR COLGADO DE SANEAMIENTO DETALLE DE COLOCACIÓN AISLAMIENTO TÉRMICO PROYECTADO EN FACHADA VENTILADA PAVIMENTO PETREO RODAPIÉ MORTERO DE AGARRE LOSA FLOTANTE ARMADA 40 mm TABIQUE LADRILLO PERFORADO TENDIDO DE YESO AISLAMIENTO TÉRMICO BANROC TERMO 40 - 50 mm SISTEMA DE FACHADA VENTILADA CÁMARA DE AIRE CHAPA DE REMATE DINTEL NUEVO PANEL PF ARENA AUTOPROTEGIDO

Language	Spanish
Drawing Type	Full Project
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, built, construction details section, cut construction details, DWG, facade, full, insulation, Project, projected, thermal, ventilated
