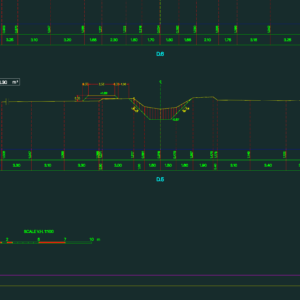

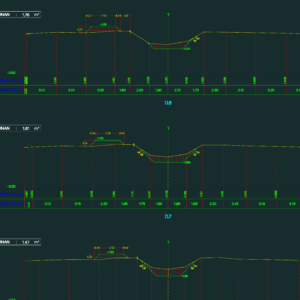

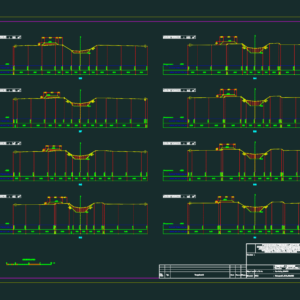

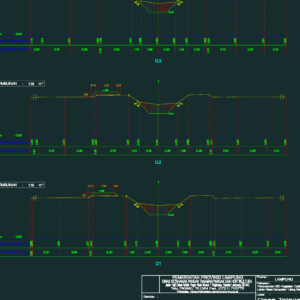

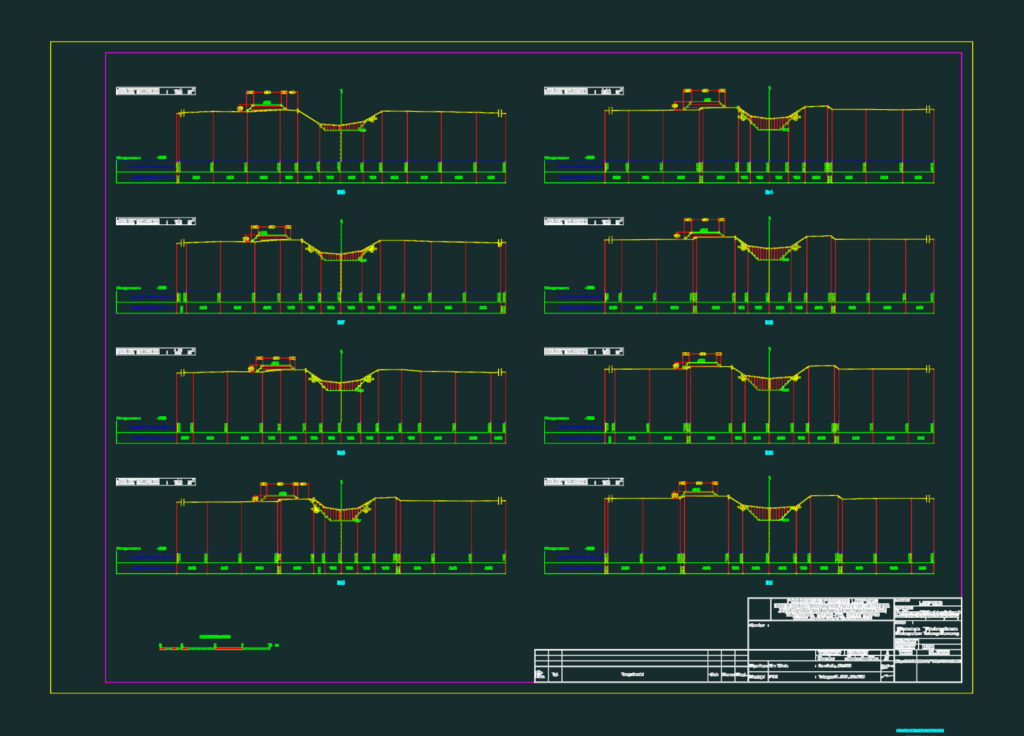

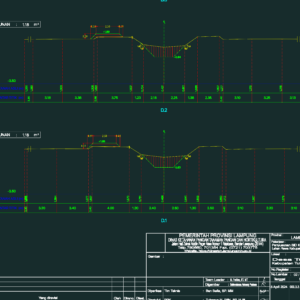

Tertiary canal cross-sections for an irrigation layout in Teladas Village, Tuang Bawang. There are eight specific sections here, D.1 through D.8, showing the profile of the “Saluran Tersier 7.” Every view includes earthwork calculations for excavation and fill (galian and timbunan) in square meters. I’ve made sure to include the ground elevation data and point-to-point distances as well. It was drawn for a swamp optimization project (Optimasi Lahan Rawa) under the Lampung Provincial government. Standard V:H 1:100 scale is used throughout the set. Includes technical details like canal bed depth, embankment slopes, and top widths. Potongan melintang saluran tersier 7 Desa Teladas.
