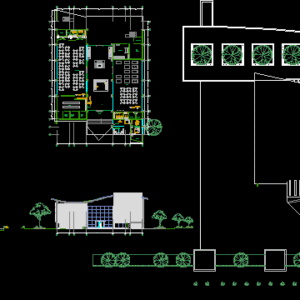

Plan, section and elevation view of personal accommodation lodge. Plan has ground plus two floor. Ground floor has following areas – main entrance, accounts area, administration area, reception, cold room, kitchen, hall, rest room, wash area, dinning area, waiting room, restaurants, 36 dinning table with chairs, staircase and elevator. First and second floor has 48 furnished bed room and toilet. It has trees and garden around the plan. Total foot print area of the plan is approximately 700 sq meters.
Lodging Hotel, Accommodation, Lodge, Hotel 2D DWG Plan for AutoCAD
